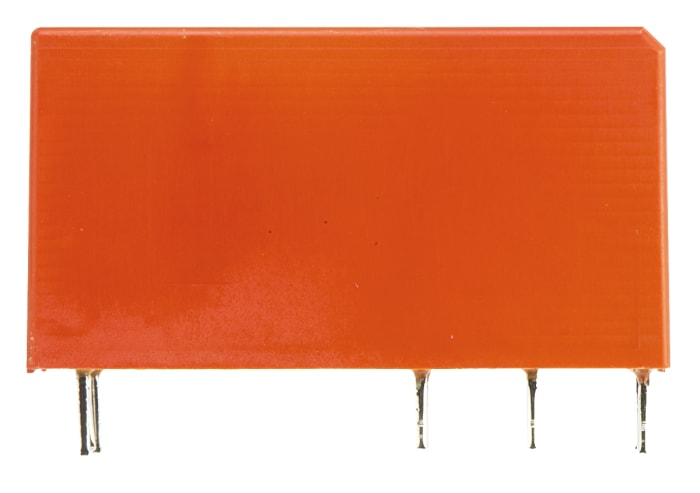

TE Connectivity PCB Power Relay, 24V dc Coil, 8A Switching Current, DPDT

Name: TE Connectivity PCB Power Relay, 24V dc Coil, 8A Switching Current, DPDT
Brand: TE Connectivity
SKU: 6803899P

RS Stock No.: 680-3899PBrand: TE ConnectivityManufacturers Part No.: RT424F24

View all in Power Relays

Technical Documents

Specifications

Brand

TE Connectivity

Product Type

Power Relay

Coil Voltage

24V dc

Contact Configuration

DPDT

Mount Type

PCB

Series

SCHRACK

Terminal Type

Solder

Switching Current

Minimum Operating Temperature

-40°C

Switching Power

2kVA

Switching AC Voltage

400V ac

Coil Resistance

886Ω

Maximum Operating Temperature

85°C

Height

15.7mm

Length

29mm

Standards/Approvals

RoHS

Width

12.7mm

Contact Material

Silver Alloy

Country of Origin

Austria

Product Details

RT1& RT2 Series - Bistable/Latching Relays

From TE Connectivity, the RT1 and RT2 Series of relays are polarized bistable (latching) relays with either 1 or 2 coils. Featuring reinforced insulation and a degree of shock resistance, the RT1 and RT2 series relays are typically used in battery powered equipment or applications where "memory function" is required (e.g. mains failure.)

Features and Benefits:

• Reinforced insulation
• RTII - flux proof
• 5mm pinning
• Shock resistance (destructive) 100g

Approvals

UL, CSA, VDE
