TE Connectivity Rotary Coded DIP Switch PCB Through Hole

Name: TE Connectivity Rotary Coded DIP Switch PCB Through Hole
Brand: TE Connectivity
SKU: 0256272

RS Stock No.: 256-272Brand: TE ConnectivityManufacturers Part No.: 1-1825008-2Distrelec Article No.: 302-80-549

View all in Rotary Encoded DIP Switches

Technical Documents

Specifications

Brand

TE Connectivity

Product Type

Rotary Coded DIP Switch

Mount Type

PCB

Terminal Type

Through Hole

Series

Product Details

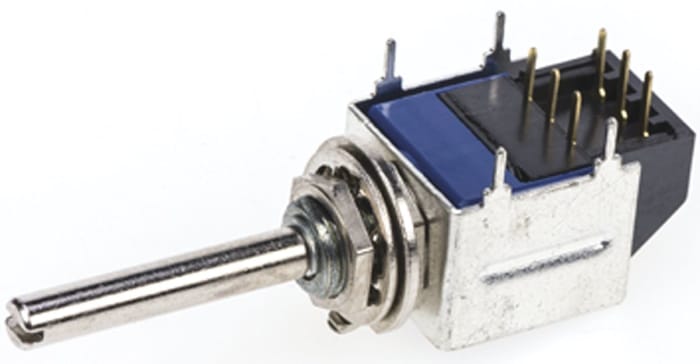

TE Connectivity DR Series Miniature Rotary DIP Switches

Miniature binary coded rotary switches with gold-flashed brass contacts utilising pin-point sliding pressure for long operating life.,Supplied fitted with a metal bracket to give additional support when PCB mounted.,Shaft end has a screwdriver slot allowing use without a knob, however, a knob can be used if required.

16-position hexadecimal (0-9, A-F) output or 10-position BCD output
Straight or right angle styles available
Case material: Polyester
Shaft: Ø3.2mm; Length: 19mm

TE Connectivity DR Series Miniature Rotary DIP Switches

16-position hexadecimal (0-9, A-F) output or 10-position BCD output
Straight or right angle styles available
Case material: Polyester
Shaft: Ø3.2mm; Length: 19mm
