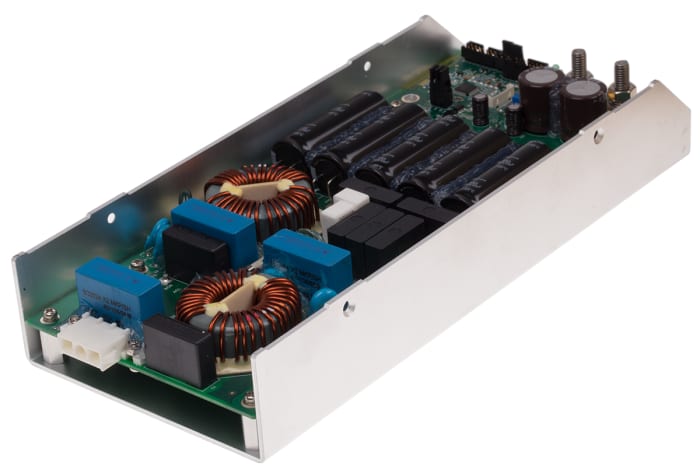

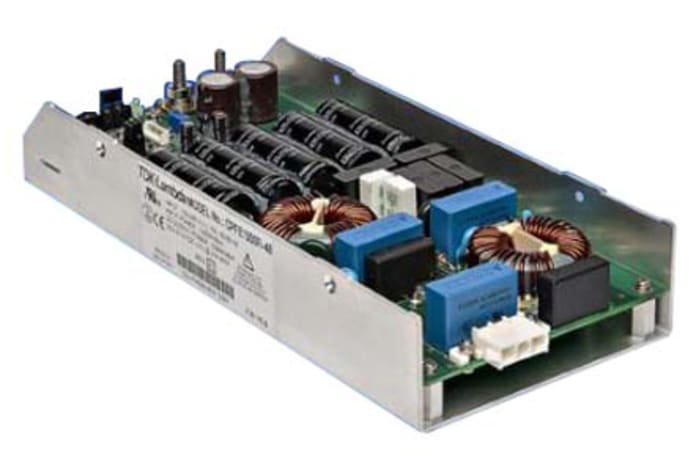

TDK-Lambda Switching Power Supply, CPFE1000FI-48 48V dc, 21A, 1 kW, Input 85V ac to 370 V dc, 265V ac

Name: TDK-Lambda Switching Power Supply, CPFE1000FI-48 48V dc, 21A, 1 kW, Input 85V ac to 370 V dc, 265V ac
Brand: TDK-Lambda
SKU: 9182000
Availability: LimitedAvailability

RS Stock No.: 918-2000Brand: TDK-LambdaManufacturers Part No.: CPFE1000FI-48

View all in Switching Power Supplies

Technical Documents

Specifications

Brand

TDK-Lambda

Product Type

Switching Power Supply

Maximum Output Voltage

48V dc

Number of Outputs

Mount Type

Chassis

Power

1kW

Minimum Operating Temperature

-40°C

SMPS Output Current

21A

Maximum Operating Temperature

85°C

Depth

40mm

Length

254mm

Weight

1.2kg

Standards/Approvals

IEC/UL/CSA/EN 62368-1, IEC 61000-4-8 (lv 4), IEC 61000-4-6 (lv 3), EN 55022-B, IEC 61000-4-2 (lv 2,3), IEC 61000-4-3 (lv3), IEC 61000-4-4 (lv 3), CE, IEC 61000-4-5 (lv 3,4), FCC-B, IEC 61000-4-11

Width

107mm

Efficiency

86%

Series

CPFE1000FI

Maximum Input Voltage

370, 265V dc

Output Current

21A

Hazardous Area Certification

Minimum Input Voltage

85V ac

Country of Origin

Malaysia

Product Details

TDK Lambda 720 to 1000W Switch Mode Power Supply, CPFE Series

Broad range of conduction cooled power supplies from TDK-Lambda, ideally suited to harsh environments where fans would not be permitted.
This highly efficient range of compact packaged power supplies are available in both U-Channel & PCB mounting options to ensure that your application is covered.
Installation for the CPFE1000FI series is simple thanks to the standard I2C interface allowing remote monitoring & interrogation of processes and performance, reducing downtime & increasing efficiency.
Overtemperature protection within the CPFE1000FI series coupled with and auto-recovery function provides added application safety.

The TDK-Lambda CPFE1000FI series is compatible in a wide variety of applications, such as industrial process automation, broadcasting equipment, renewable energy & LED displays & signage.

Standards

MIL-STD-810F, UL60950-1, EN60950-1, IEC6100-4-2 & CE Standards

Switch Mode - TDK-Lambda

TDK Lambda 720 to 1000W Switch Mode Power Supply, CPFE Series

The TDK-Lambda CPFE1000FI series is compatible in a wide variety of applications, such as industrial process automation, broadcasting equipment, renewable energy & LED displays & signage.

Standards

MIL-STD-810F, UL60950-1, EN60950-1, IEC6100-4-2 & CE Standards
