STMicroelectronics, Thyristor 600 V, 16 A 40 mA 314 A 1.6 V

Name: STMicroelectronics, Thyristor 600 V, 16 A 40 mA 314 A 1.6 V
Brand: STMicroelectronics
SKU: 6871016P

RS Stock No.: 687-1016PBrand: STMicroelectronicsManufacturers Part No.: TYN625RG

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

16A

Product Type

Thyristor

Thyristor Type

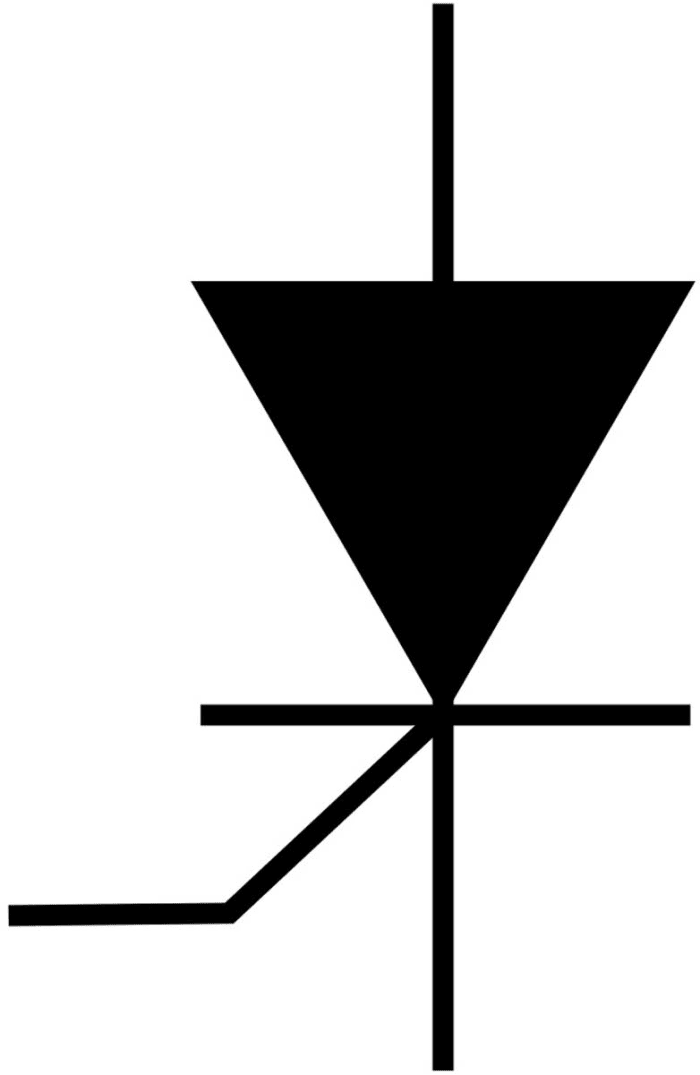

SCR

Package Type

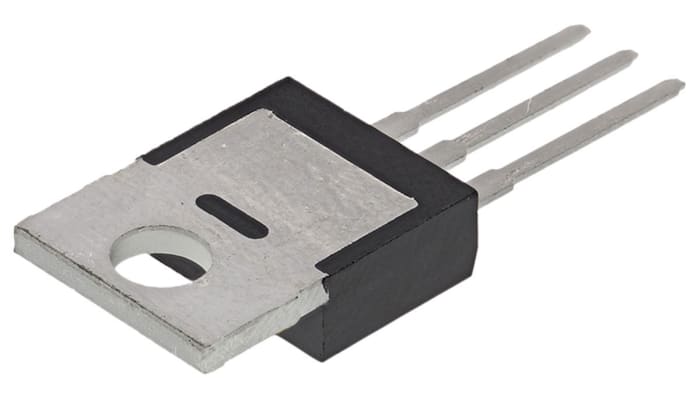

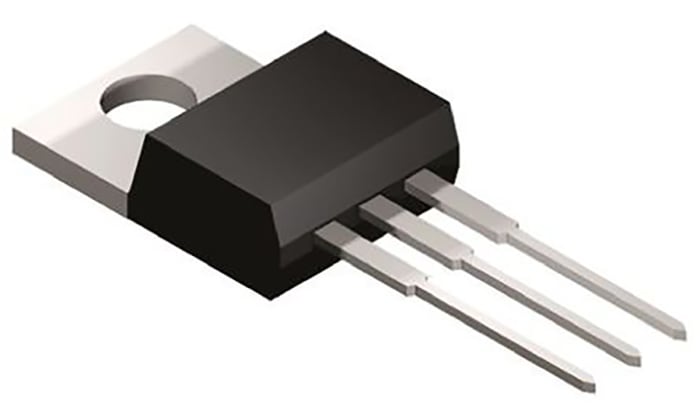

TO-220

Repetitive Peak Reverse Voltage VDRM

600V

Surge Current Rating

314A

Mount Type

Through Hole

Maximum Gate Trigger Current Igt

40mA

Pin Count

Minimum Operating Temperature

-40°C

Maximum Holding Current Ih

50mA

Maximum Gate Trigger Voltage Vgt

1.3V

Maximum Operating Temperature

125°C

Standards/Approvals

Series

25 A SCRs

Repetitive Peak Off-State Current

5μA

Peak On-State Voltage

1.6V

Automotive Standard

Product Details

Thyristors, STMicroelectronics

A wide range of general purpose Thyristors from STMicroelectronics with blocking voltage ratings of 400 to 1200V and on-state current rating of up to 50A.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.
