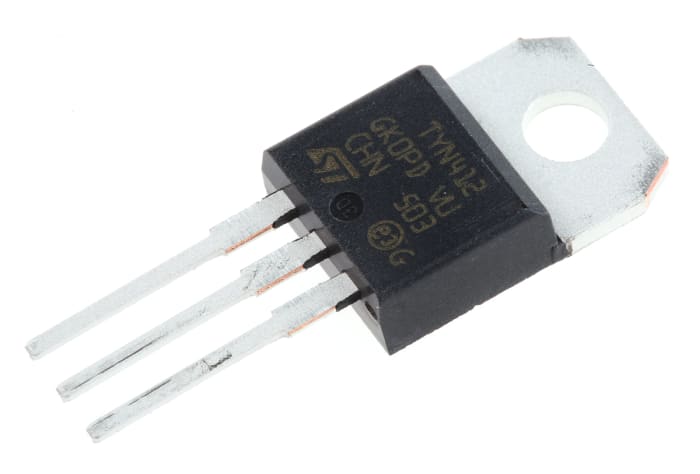

STMicroelectronics TYN412RG, Silicon Controlled Rectifier 1000 V, 12 A 15 mA 145 A 1.6 V

Name: STMicroelectronics TYN412RG, Silicon Controlled Rectifier 1000 V, 12 A 15 mA 145 A 1.6 V
Brand: STMicroelectronics
SKU: 8111050
Availability: LimitedAvailability

RS Stock No.: 811-1050Brand: STMicroelectronicsManufacturers Part No.: TYN412RG

View all in Thyristors

Technical Documents

Specifications

Brand

STMicroelectronics

Rated Average On-State Current Irms

12A

Product Type

Silicon Controlled Rectifier

Thyristor Type

SCR

Package Type

TO-220

Repetitive Peak Reverse Voltage VDRM

1000V

Surge Current Rating

145A

Mount Type

Through Hole

Maximum Gate Trigger Current Igt

15mA

Pin Count

Maximum Holding Current Ih

30mA

Minimum Operating Temperature

-40°C

Maximum Gate Trigger Voltage Vgt

1.5V

Maximum Operating Temperature

125°C

Standards/Approvals

UL RECOGNiseD : E81734

Series

TYN412

Peak On-State Voltage

1.6V

Automotive Standard

Product Details

Thyristors, STMicroelectronics

A wide range of general purpose Thyristors from STMicroelectronics with blocking voltage ratings of 400 to 1200V and on-state current rating of up to 50A.

Thyristors - STMicroelectronics

STMicroelectronics produces a large range of Thyristors, also known as SCRs or Silicon Controlled Rectifiers, which are suitable for a host of power switching and control applications. Specialized types include sensitive gate thyristors and devices designed for capacitance discharge applications.
