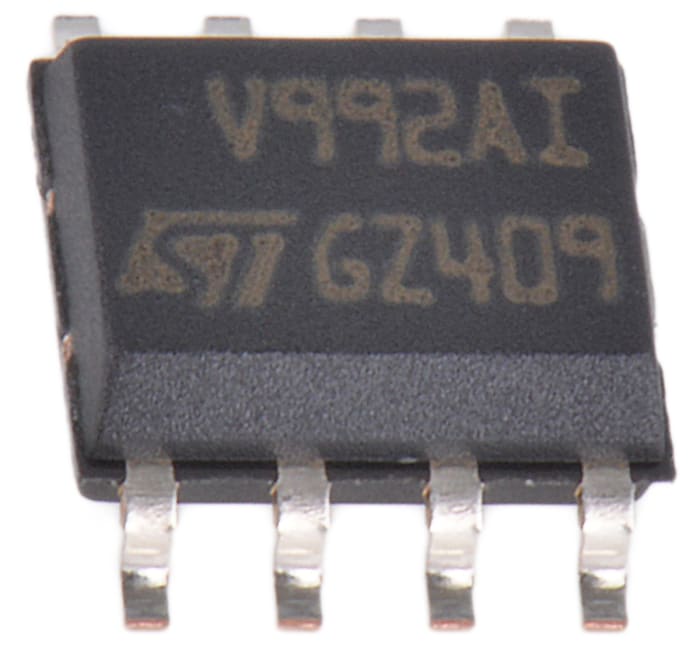

TSV992AIDT STMicroelectronics, Operational Amplifier, 20 MHz, 8-Pin 5.5V SOIC

Name: TSV992AIDT STMicroelectronics, Operational Amplifier, 20 MHz, 8-Pin 5.5V SOIC
Brand: STMicroelectronics
SKU: 7959091P

RS Stock No.: 795-9091PBrand: STMicroelectronicsManufacturers Part No.: TSV992AIDT

View all in Op Amps

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOIC

Number of Channels

Pin Count

GBP - Gain Bandwidth Product

20MHz

Minimum Supply Voltage

2.5V

Maximum Supply Voltage

5.5V

Input Bias Current

100 pA

Minimum Operating Temperature

-40°C

Vos - Input Offset Voltage

3 mV

Slew Rate

10V/μs

Maximum Operating Temperature

125°C

Height

1.25mm

Length

5mm

Standards/Approvals

RoHS

Series

TSV992A

Output Current

16mA

Automotive Standard

AEC-Q100

Input Offset Current

100 pA

Product Details

TSV99x, TSV99xA, Rail-to-Rail I/O High Merit Factor Operational Amplifiers

The TSV991 (Single), TSV992 (Dual) and TSV994 (Quad) operational amplifiers feature an excellent speed/power consumption ratio.

Low input offset voltage: 1.5 mV max. (A grade)
Wide bandwidth 20 MHz
Stable for gain ≥ 4 or ≤ -3
Low power consumption: 820 μA typical
High output current: 35 mA
Power supply operation from 2.5 V to 5.5 V
Low input bias current, 1 pA
ESD high tolerance: 5 kV
