Technical Documents
Specifications
Brand

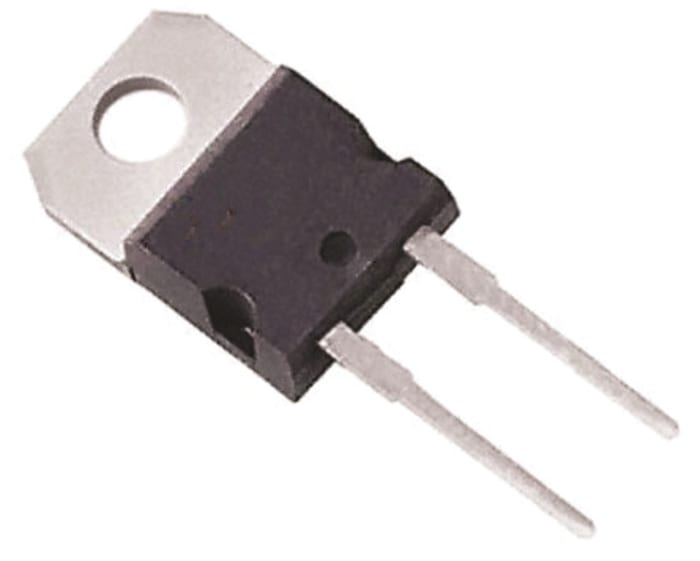

STMicroelectronicsProduct Type
Diode
Mount Type
Through Hole
Package Type
TO-220
Maximum Continuous Forward Current If
30A
Peak Reverse Repetitive Voltage Vrrm
1kV
Diode Configuration
Single
Series
STTH3010
Rectifier Type
High Voltage
Pin Count
2
Peak Reverse Current Ir
100μA
Maximum Forward Voltage Vf
2V
Minimum Operating Temperature
-65°C
Peak Non-Repetitive Forward Surge Current Ifsm
180A
Peak Reverse Recovery Time trr
100ns
Maximum Operating Temperature
175°C
Length
10.4mm
Height
15.75mm
Standards/Approvals
RoHS
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
P.O.A.
Each (Supplied in a Tube) (ex VAT)
Production pack (Tube)
2
P.O.A.
Each (Supplied in a Tube) (ex VAT)
Stock information temporarily unavailable.
Production pack (Tube)
2
