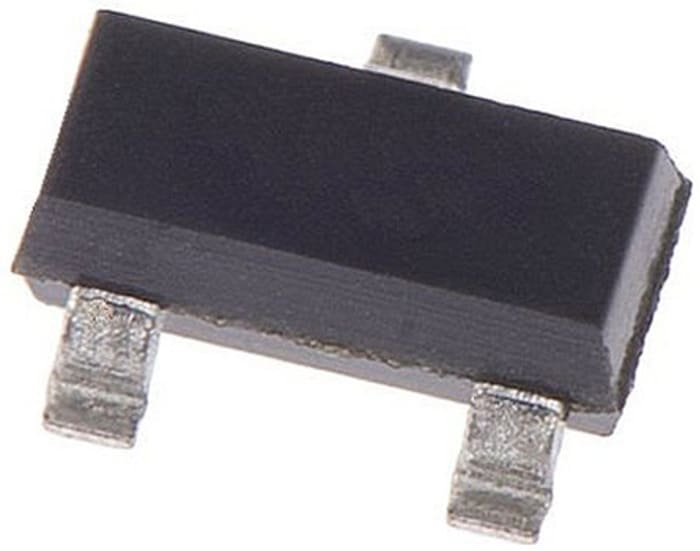

STMicroelectronics Transistor, 500 mA NPN, 500 V, 3-Pin SOT-23

Name: STMicroelectronics Transistor, 500 mA NPN, 500 V, 3-Pin SOT-23
Brand: STMicroelectronics
SKU: 7917863P

RS Stock No.: 791-7863PBrand: STMicroelectronicsManufacturers Part No.: STR1550

View all in Bipolar Transistors

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Transistor

Maximum DC Collector Current Idc

500mA

Maximum Collector Emitter Voltage Vceo

500V

Package Type

SOT-23

Mount Type

Surface

Transistor Configuration

Single

Maximum Collector Base Voltage VCBO

500V

Maximum Power Dissipation Pd

500mW

Transistor Polarity

NPN

Minimum DC Current Gain hFE

Maximum Emitter Base Voltage VEBO

Pin Count

Maximum Operating Temperature

150°C

Length

3.04mm

Height

1.4mm

Standards/Approvals

Series

STR

Automotive Standard

Product Details

High Voltage Transistors, STMicroelectronics

Bipolar Transistors, STMicroelectronics

A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
