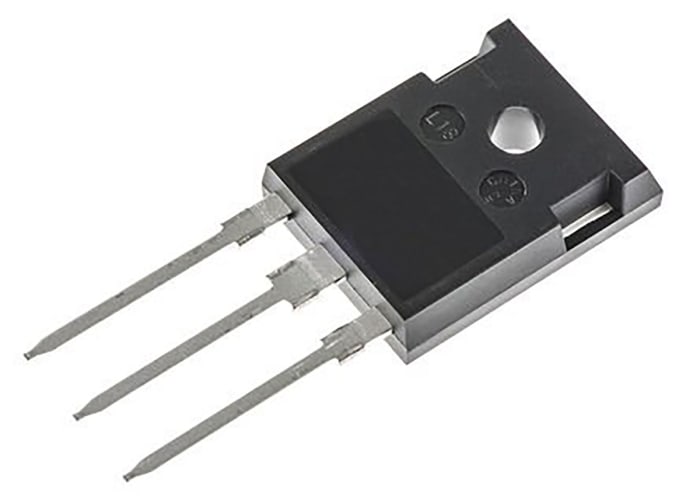

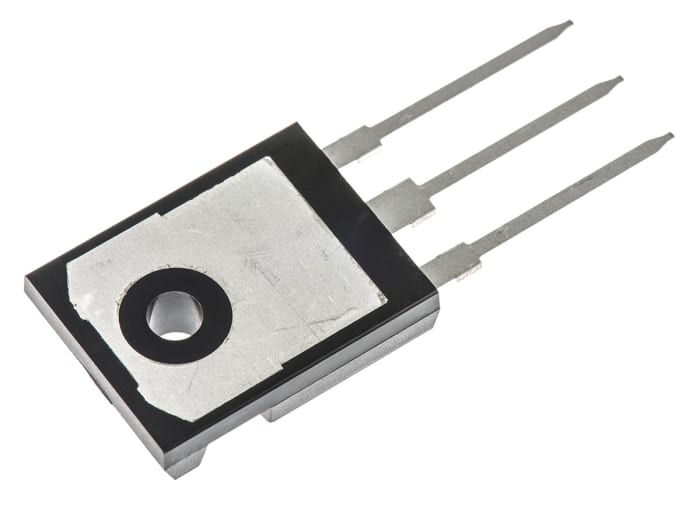

STMicroelectronics 45 V 40 A Diode Schottky 3-Pin TO-247

Name: STMicroelectronics 45 V 40 A Diode Schottky 3-Pin TO-247
Brand: STMicroelectronics
SKU: 4858213P

RS Stock No.: 485-8213PBrand: STMicroelectronicsManufacturers Part No.: STPS4045CW

View all in Schottky Diodes & Rectifiers

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Through Hole

Package Type

TO-247

Maximum Continuous Forward Current If

40A

Peak Reverse Repetitive Voltage Vrrm

45V

Diode Configuration

Common Cathode

Series

STPS4045C

Rectifier Type

Schottky

Pin Count

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

220A

Maximum Forward Voltage Vf

0.63V

Peak Reverse Current Ir

200μA

Maximum Operating Temperature

175°C

Height

20.15mm

Length

15.75mm

Standards/Approvals

Automotive Standard

Product Details

Schottky Barrier Diodes, 40A to 240A, STMicroelectronics

This high voltage Schottky rectifier is suited for high frequency switch mode power supplies.

Packaged in ISOTOP, this device is intended for use in the secondary rectification of applications.

Key Features

Negligible switching losses

Avalanche rated

Low leakage current

Good trade-off between leakage current and forward voltage drop

Insulated package ISOTOP:

- Insulated voltage: 2500 VRMS
- Capacitance: 45 pF

Diodes and Rectifiers, STMicroelectronics
