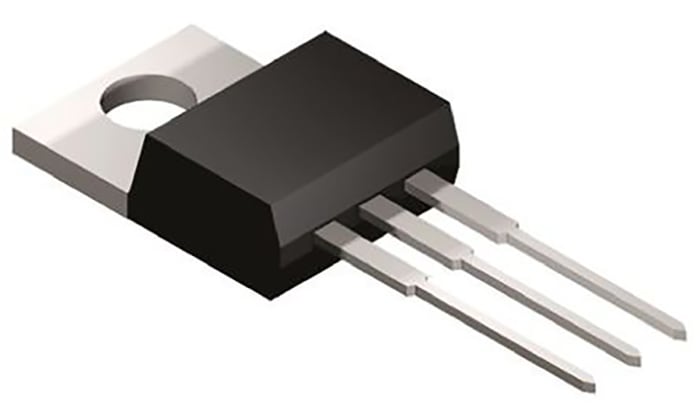

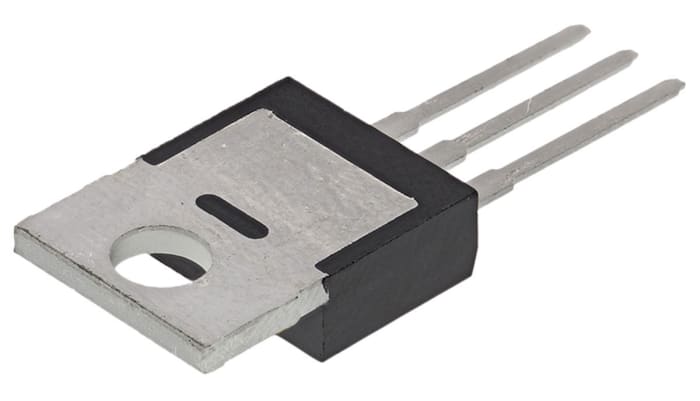

STMicroelectronics 150 V 40 A Diode Schottky 3-Pin TO-220

Name: STMicroelectronics 150 V 40 A Diode Schottky 3-Pin TO-220
Brand: STMicroelectronics
SKU: 4865918P

RS Stock No.: 486-5918PBrand: STMicroelectronicsManufacturers Part No.: STPS40150CT

View all in Schottky Diodes & Rectifiers

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Through Hole

Package Type

TO-220

Maximum Continuous Forward Current If

40A

Peak Reverse Repetitive Voltage Vrrm

150V

Diode Configuration

Common Cathode

Series

STPS40150C

Rectifier Type

Schottky

Pin Count

Peak Reverse Current Ir

8μA

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

250A

Maximum Forward Voltage Vf

0.69V

Maximum Operating Temperature

175°C

Height

9.15mm

Length

10.4mm

Standards/Approvals

Automotive Standard

Product Details

Schottky Barrier Diodes, 40A to 240A, STMicroelectronics

This high voltage Schottky rectifier is suited for high frequency switch mode power supplies.

Packaged in ISOTOP, this device is intended for use in the secondary rectification of applications.

Key Features

Negligible switching losses

Avalanche rated

Low leakage current

Good trade-off between leakage current and forward voltage drop

Insulated package ISOTOP:

- Insulated voltage: 2500 VRMS
- Capacitance: 45 pF

Diodes and Rectifiers, STMicroelectronics

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

Download and use our DesignSpark software for your PCB and 3D Mechanical designs
View and contribute website content and forums
Download 3D Models, Schematics and Footprints from more than a million products

Click here to find out more

View all in Schottky Diodes & Rectifiers
