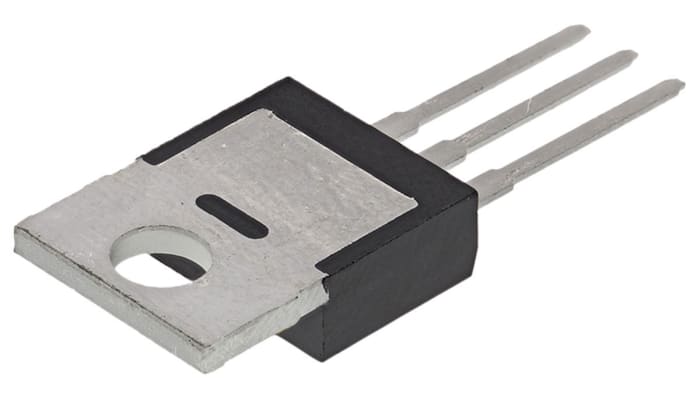

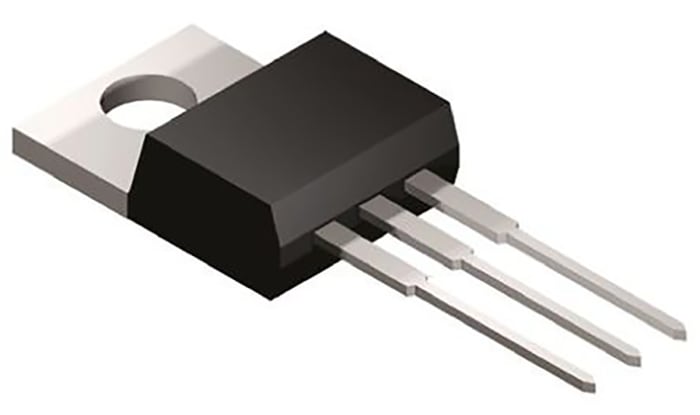

STMicroelectronics MDmesh Type N-Channel MOSFET, 12 A, 500 V Enhancement, 3-Pin TO-220

Brand

Product Type

MOSFET

Channel Type

Type N

Maximum Continuous Drain Current Id

12A

Maximum Drain Source Voltage Vds

500V

Package Type

TO-220

Series

MDmesh

Mount Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance Rds

320mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

27nC

Maximum Power Dissipation Pd

90W

Minimum Operating Temperature

-55°C

Forward Voltage Vf

1.6V

Maximum Operating Temperature

150°C

Length

10.4mm

Height

15.75mm

Standards/Approvals

No

Automotive Standard

No
