Technical Documents
Specifications
Brand
STMicroelectronicsMaximum Continuous Collector Current Ic
120A
Product Type
IGBT
Maximum Collector Emitter Voltage Vceo
600V
Maximum Power Dissipation Pd
469W

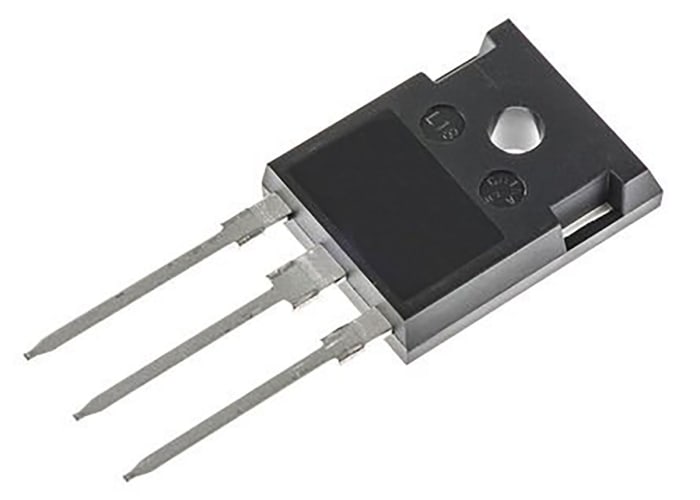

Package Type
TO-247
Mount Type
Through Hole
Channel Type
Type N
Pin Count
3
Switching Speed
1MHz
Maximum Gate Emitter Voltage VGEO
20 V
Maximum Collector Emitter Saturation Voltage VceSAT
2.3V
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
175°C
Length
15.75mm
Height
20.15mm
Standards/Approvals
No
Series
Trench Gate Field Stop
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
SR 28.00
SR 28.00 Each (ex VAT)
SR 32.20
SR 32.20 Each (inc. VAT)
Standard
1
SR 28.00
SR 28.00 Each (ex VAT)
SR 32.20
SR 32.20 Each (inc. VAT)
Stock information temporarily unavailable.
Standard
1
