Technical Documents
Specifications
Brand
STMicroelectronicsMaximum Continuous Collector Current Ic
40A
Product Type
IGBT
Maximum Collector Emitter Voltage Vceo
600V
Maximum Power Dissipation Pd
283W
Package Type

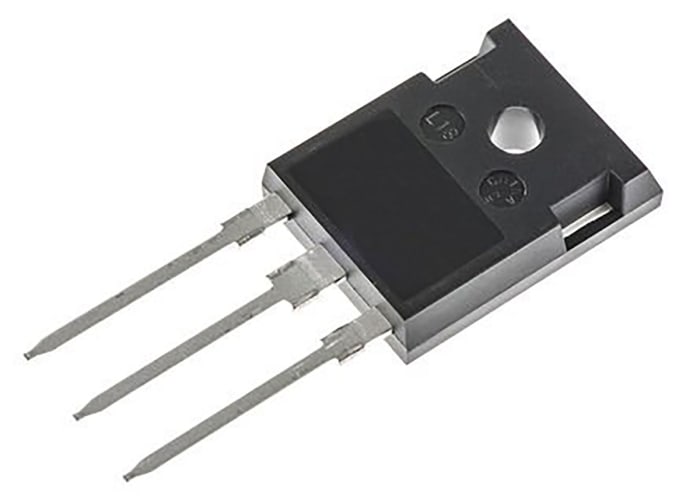

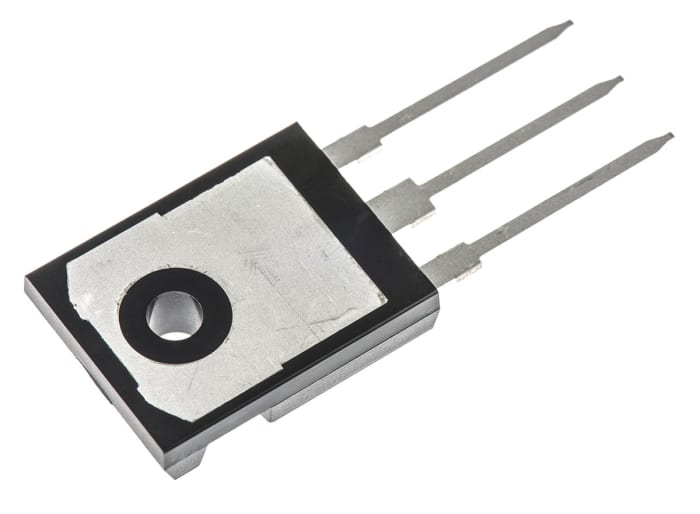

TO-247
Mount Type
Through Hole
Channel Type
Type N
Pin Count
3
Maximum Gate Emitter Voltage VGEO
±20 V
Maximum Collector Emitter Saturation Voltage VceSAT
2V
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
175°C
Length
15.75mm
Height
20.15mm
Standards/Approvals
RoHS
Series
H
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
SR 58.00
SR 29.00 Each (In a Pack of 2) (ex VAT)
SR 66.70
SR 33.35 Each (In a Pack of 2) (inc. VAT)
Standard
2
SR 58.00
SR 29.00 Each (In a Pack of 2) (ex VAT)
SR 66.70
SR 33.35 Each (In a Pack of 2) (inc. VAT)
Stock information temporarily unavailable.
Standard
2
