Technical Documents
Specifications
Brand

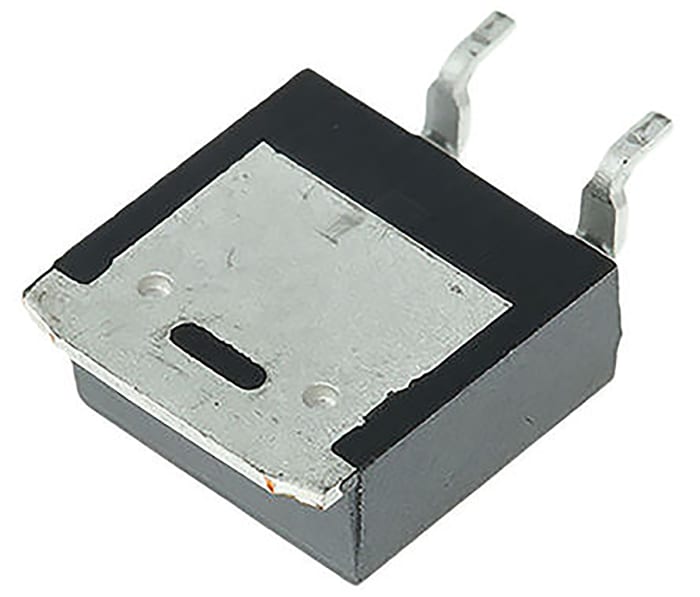

STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
45A
Maximum Drain Source Voltage Vds
100V
Package Type
TO-252
Series
STripFET H7
Mount Type
Surface
Pin Count
3
Maximum Drain Source Resistance Rds
18mΩ
Channel Mode
Enhancement
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
25nC
Forward Voltage Vf
1.1V
Maximum Power Dissipation Pd
60W
Maximum Operating Temperature
175°C
Height
2.4mm
Length
6.6mm
Standards/Approvals
No
Automotive Standard
No
Product Details
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
SR 55.00
SR 11.00 Each (In a Pack of 5) (ex VAT)
SR 63.25
SR 12.65 Each (In a Pack of 5) (inc. VAT)
Standard
5
SR 55.00
SR 11.00 Each (In a Pack of 5) (ex VAT)
SR 63.25
SR 12.65 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
