Technical Documents
Specifications
Brand

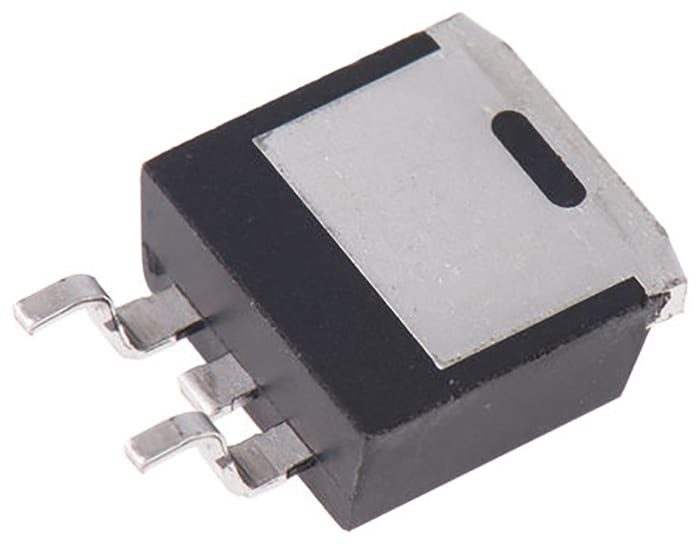

STMicroelectronicsProduct Type
MOSFET
Channel Type
Type N
Maximum Continuous Drain Current Id
75A
Maximum Drain Source Voltage Vds
75V
Package Type
TO-263
Series
STripFET II
Mount Type
Surface
Pin Count
3
Maximum Drain Source Resistance Rds
11mΩ
Channel Mode
Enhancement
Maximum Power Dissipation Pd
300W
Minimum Operating Temperature
-55°C
Typical Gate Charge Qg @ Vgs
75nC
Forward Voltage Vf
1.2V
Maximum Operating Temperature
175°C
Height
4.6mm
Length
10.4mm
Standards/Approvals
No
Automotive Standard
No
Product Details
