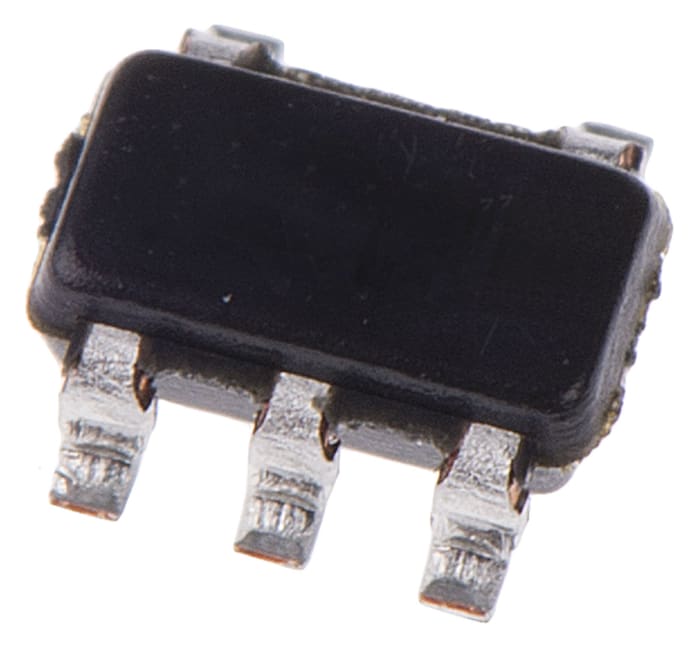

STMicroelectronics, Operational Amplifier, 1.3 MHz, 5-Pin 6V SOT-23

Name: STMicroelectronics, Operational Amplifier, 1.3 MHz, 5-Pin 6V SOT-23
Brand: STMicroelectronics
SKU: 0426130P

RS Stock No.: 426-130PBrand: STMicroelectronicsManufacturers Part No.: LMV321RILT

View all in Op Amps

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOT-23

Number of Channels

Pin Count

GBP - Gain Bandwidth Product

1.3MHz

Maximum Supply Voltage

Minimum Supply Voltage

Minimum Operating Temperature

-40°C

Vos - Input Offset Voltage

6 mV

Slew Rate

0.45V/μs

Input Bias Current

95 nA

Maximum Operating Temperature

125°C

Length

3mm

Standards/Approvals

RoHS

Series

LMV321

Height

1.3mm

Automotive Standard

AEC-Q100

Output Current

46mA

Input Offset Current

25 nA

Product Details

LMV321, LMV324, LMV358, Low Power Rail-to-Rail Input/Output Operational Amplifiers

The LMV321 (single), LMV358 (dual) and LMV324 (quad) are general purpose operational amplifiers. With such a low consumption and a sufficient Gain Bandwidth Product (GBP), they find applications in circuits of battery supplied and portable equipment.

Power supply operation from 2.7 V to 6 V
Rail-to-Rail input and output
Low supply current: 145 μA
Gain bandwidth product: 1 MHz
Electrostatic Discharge (ESD) tolerance: 2 kV
