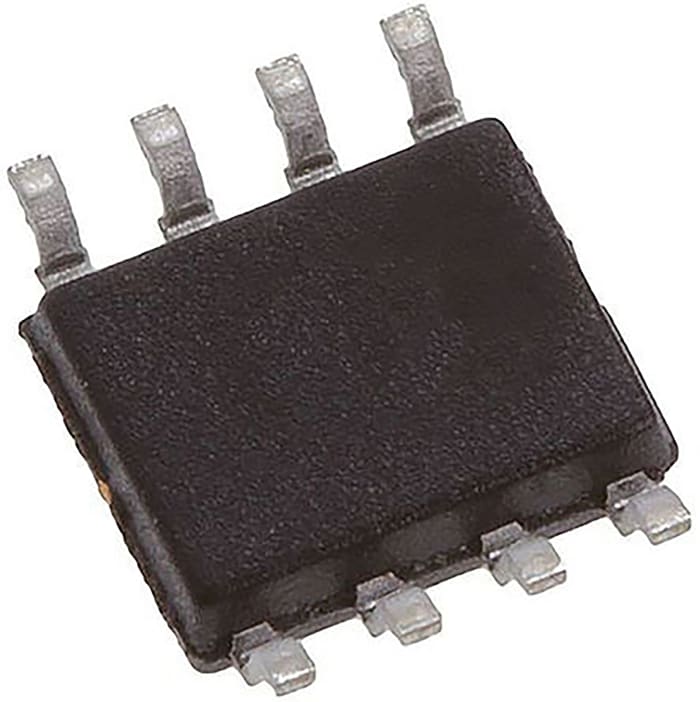

STMicroelectronics, Operational Amplifier, 1.1 MHz, 8-Pin 30V SOIC

Name: STMicroelectronics, Operational Amplifier, 1.1 MHz, 8-Pin 30V SOIC
Brand: STMicroelectronics
SKU: 8607283P

RS Stock No.: 860-7283PBrand: STMicroelectronicsManufacturers Part No.: LM358AWDT

View all in Op Amps

Technical Documents

Specifications

Brand

STMicroelectronics

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOIC

Number of Channels

Pin Count

GBP - Gain Bandwidth Product

1.1MHz

Minimum Supply Voltage

Maximum Supply Voltage

30V

Input Bias Current

150 nA

Minimum Operating Temperature

0°C

Vos - Input Offset Voltage

7 mV

Slew Rate

0.6V/μs

Maximum Operating Temperature

70°C

Height

1.5mm

Length

5mm

Standards/Approvals

RoHS

Series

LM358W

Output Current

60mA

Automotive Standard

AEC-Q100

Input Offset Current

30 nA

Product Details

LM158, LM258, LM358, Low Power Dual Operational Amplifiers with Low Input Bias Current

The LM158, LM258, LM358 operational amplifiers consist of two independent, high-gain, internally frequency-compensated circuits. In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground.

Designed to operate from a single power supply
Large DC voltage gain: 100 dB
Wide bandwidth (unity gain): 1.1 MHz
