Technical Documents
Specifications
Brand
STMicroelectronicsProduct Type
Bipolar Transistor
Maximum DC Collector Current Idc
-10A
Maximum Collector Emitter Voltage Vceo
-50V
Package Type
SOT-89
Mount Type
Surface
Transistor Configuration
Single
Maximum Power Dissipation Pd
1.4W
Transistor Polarity
PNP
Minimum DC Current Gain hFE
80
Maximum Emitter Base Voltage VEBO
-5V
Minimum Operating Temperature
-65°C
Maximum Transition Frequency ft
1MHz
Pin Count
4
Maximum Operating Temperature
150°C
Length
4.6mm
Height
1.6mm
Standards/Approvals
No
Automotive Standard
No
Product Details

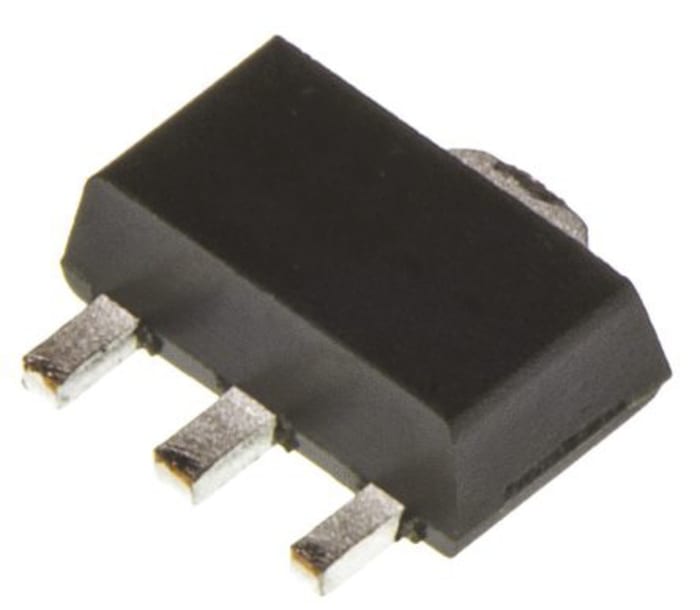

The 2STF2550 and 2STN2550 are PNP transistors manufactured using new PB-HCD (Power bipolar high current density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage.
