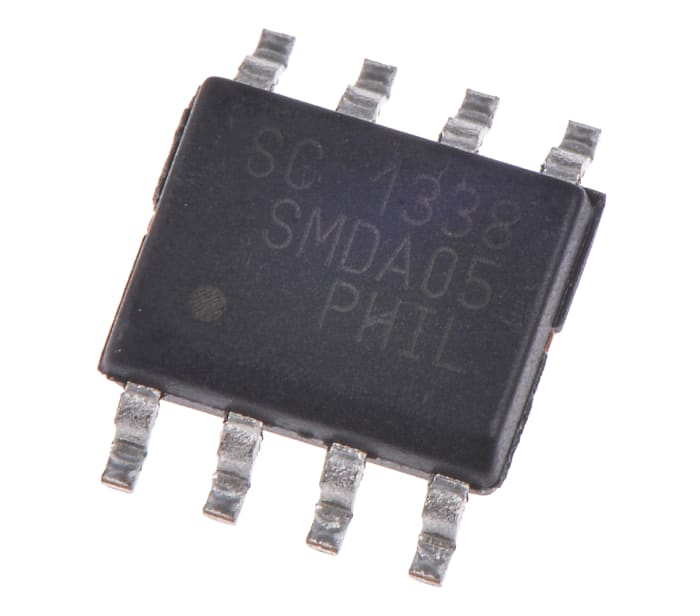

Semtech 4-Element Uni-Directional TVS Diode, 300 W, 8-Pin SOIC

Name: Semtech 4-Element Uni-Directional TVS Diode, 300 W, 8-Pin SOIC
Brand: Semtech
SKU: 6910815P
Availability: LimitedAvailability

RS Stock No.: 691-0815PBrand: SemtechManufacturers Part No.: SMDA05.TBT

View all in TVS Diodes

Technical Documents

Specifications

Brand

Semtech

Direction Type

Uni-Directional

Diode Configuration

Isolated

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

Mount Type

Surface

Package Type

SOIC

Maximum Reverse Stand-off Voltage Vwm

Pin Count

Peak Pulse Power Dissipation Pppm

300W

ESD Protection

Yes

Clamping Voltage VC

11V

Minimum Operating Temperature

-55°C

Test Current It

1mA

Maximum Peak Pulse Current Ippm

17A

Maximum Operating Temperature

125°C

Number of Elements per Chip

Standards/Approvals

Width

4mm

Series

SMDA05

Height

1.5mm

Length

5mm

Automotive Standard

Maximum Reverse Leakage Current

20μA

Product Details

300W Unidirectional TVS Array, SMDA Series

300 Watts Peak Pulse power (tp = 8/20μs)
Transient protection for data lines to:
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 12A (8/20μs)
Protects unidirectional data I/O lines

Transient Voltage Suppressors, Semtech
