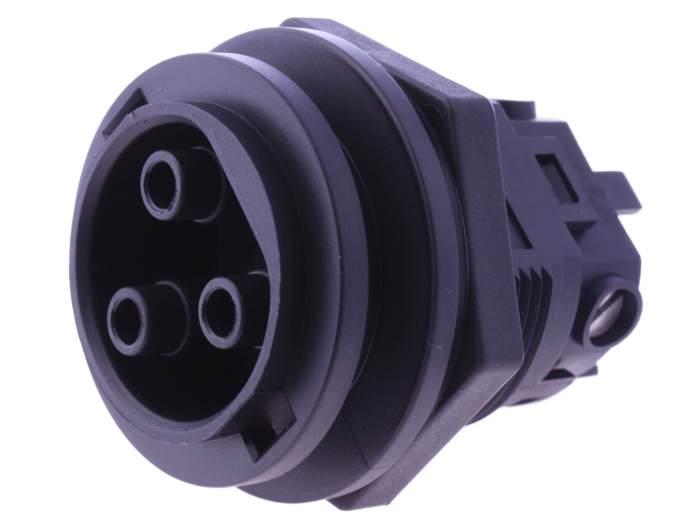

RS PRO Circular Connector, 3 Contacts, Panel Mount, M25 Connector, Socket, Female, IP67, M25 Power Series

RS Stock No.: 231-7909Brand: RS PRO
brand-logo
View all in Industrial Circular Connectors

Technical Document

Specifications

Brand

RS Pro

Number of Contacts

3

Product Type

Circular Connector

Mount Type

Panel Mount

Current

30A

Connector Size

M25

Plug/Socket

Socket

Contact Gender

Female

IP Rating

IP67

Series

M25 Power

Orientation

Straight

Voltage

600 V

Termination Type

Screw

Mating Type

Bayonet

Shell Size

34 mm

Minimum Operating Temperature

-40°C

Housing Material

Thermoplastic

Maximum Operating Temperature

105°C

Standards/Approvals

No

Pole Format

3

Contact Plating

Nickel

Contact Material

Copper Alloy
