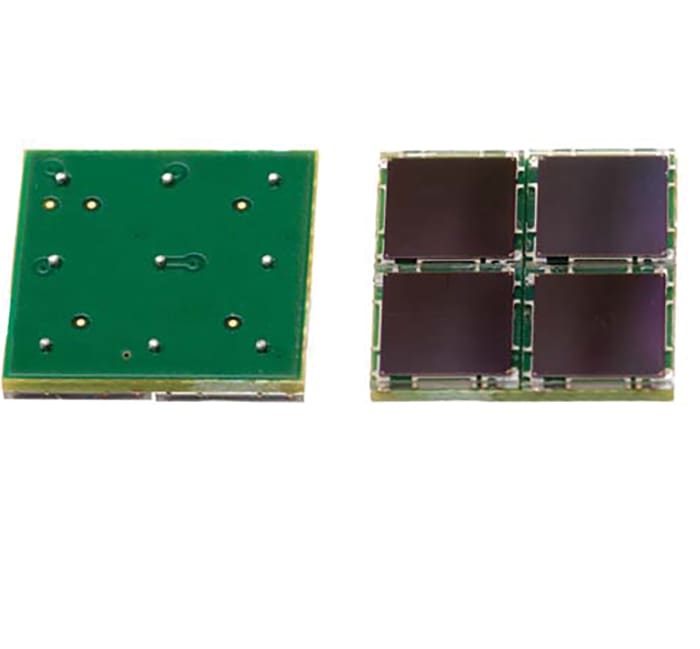

onsemi ArrayC-60035-4P-BGA 4-Element Photomultiplier Photomultiplier, Surface BGA package

Name: onsemi ArrayC-60035-4P-BGA 4-Element Photomultiplier Photomultiplier, Surface BGA package
Brand: onsemi
SKU: 1859611
Availability: LimitedAvailability

RS Stock No.: 185-9611Brand: onsemiManufacturers Part No.: ArrayC-60035-4P-BGA

View all in Photomultipliers

Technical Documents

Specifications

Brand

onsemi

Product Type

Photomultiplier

Wavelength of Peak Sensitivity

420nm

Element Type

Photomultiplier

Number of Elements

Number of Pins

Mount Type

Surface

Package Type

BGA

Length

14.2mm

Height

2.3mm

Standards/Approvals

J-STD-20

Width

14.2mm

Automotive Standard

Series

C SiPM

Product Details

4-Side scalable arrays
Variety of formats ranging from 2x2 to 12x12
Minimal deadspace at the edges allowing tiling on all sides to allow the creation to still larger detection areas
Each array has either a multi-way connector or BGA on the reverse for access to all signals
The pixel signals can either be read out individually for imaging applications, or summed by the user to create a large area, single-channel sensor
The pixel-level performance is exactly as per that of the individual C-Series sensors
Optional evaluation boards for are available for easy access to signals
Applications
Medical Imaging
Hazard & Threat
3D Ranging & Sensing
Biophotonics & Sciences
High Energy Physics
