Technical Documents
Specifications
Brand
OmronThread Size
M30
Product Type

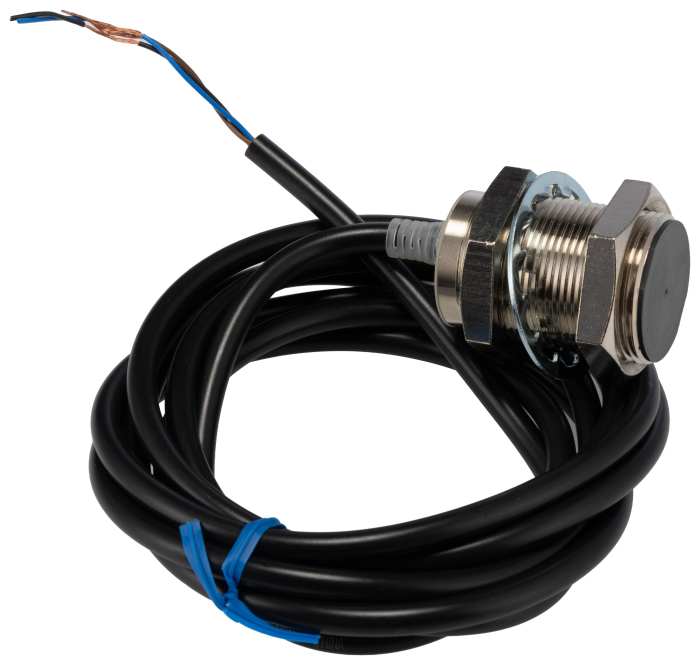

Inductive Proximity Sensor
Body Style
Threaded Barrel
Length
60.3mm
IP Rating
IP69K, IP67G, IP67
Terminal Type
Cable
Mount Type
Flush
Width
30mm
Maximum Supply Voltage
30V
Housing Material
Brass
Maximum Detection
22mm
Minimum Operating Temperature
-25°C
Maximum DC Voltage
30V dc
Materials Detected
Ferrous Metal
Maximum Operating Temperature
70°C
Standards/Approvals
RoHS
Depth
30mm
Maximum Switching Frequency
200Hz
Shielding
Shielded
Series
E2E-NEXT
Switching Current
16mA
Output Type
NPN
Stock information temporarily unavailable.
SR 448.00
SR 448.00 Each (ex VAT)
SR 515.20
SR 515.20 Each (inc. VAT)
1
SR 448.00
SR 448.00 Each (ex VAT)
SR 515.20
SR 515.20 Each (inc. VAT)
Stock information temporarily unavailable.
1
