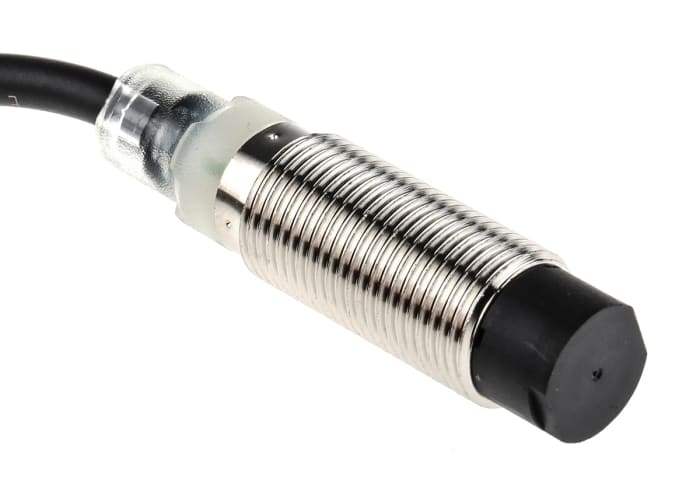

Omron E2B-M12KN08-WP-C1 2M Threaded Barrel Inductive Proximity Sensor, M12 NPN E2B 24V dc 8 mm 30 V dc 200mA

Name: Omron E2B-M12KN08-WP-C1 2M Threaded Barrel Inductive Proximity Sensor, M12 NPN E2B 24V dc 8 mm 30 V dc 200mA
Brand: Omron
SKU: 8052548
Availability: LimitedAvailability

RS Stock No.: 805-2548Brand: OmronManufacturers Part No.: E2B-M12KN08-WP-C1 2MDistrelec Article No.: 300-69-173

View all in Proximity Sensors

Technical Documents

Specifications

Brand

Omron

Thread Size

M12

Product Type

Inductive Proximity Sensor

Body Style

Threaded Barrel

IP Rating

IP67

Length

30mm

Mount Type

Flush

Terminal Type

Cable

Width

17mm

Maximum Supply Voltage

24V dc

Housing Material

Brass

Materials Detected

Metal

Maximum Detection

8mm

Minimum Operating Temperature

-25°C

Maximum DC Voltage

30V dc

Maximum Operating Temperature

70°C

Standards/Approvals

EMC, IEC

Maximum Switching Frequency

800Hz

Shielding

Series

E2B

Switching Current

200mA

Output Type

NPN

Depth

10.5mm

Product Details

E2B Brass Standard Length

The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

Features and benefits

IP67 rated for protection in wet environments

360 ° visible LED for operation control

Pre-wired and connector variations available

Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Standard temperature range –25°C to 70°C
