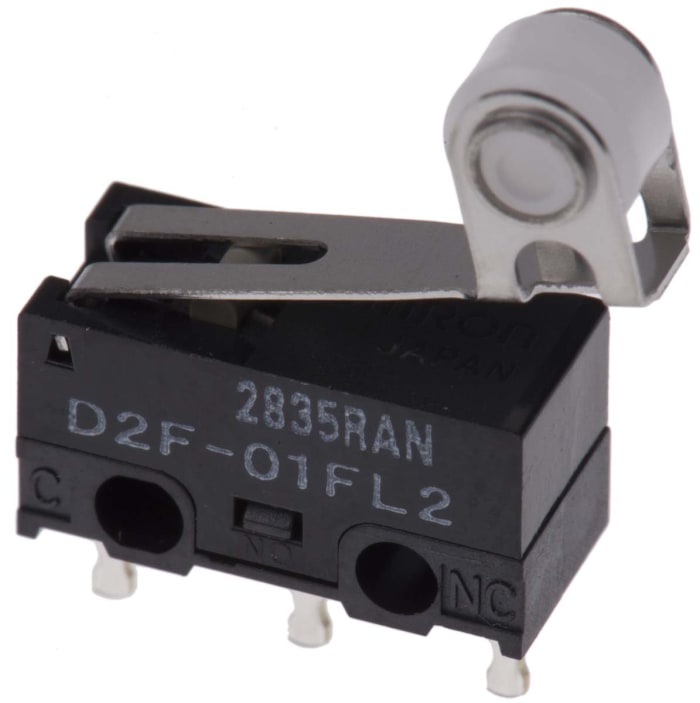

Omron Roller Lever Micro Switch, PCB Terminal Terminal, 100mA, 30 V dc, SPDT, IP40

Name: Omron Roller Lever Micro Switch, PCB Terminal Terminal, 100mA, 30 V dc, SPDT, IP40
Brand: Omron
SKU: 6160142
Availability: LimitedAvailability

RS Stock No.: 616-0142Brand: OmronManufacturers Part No.: D2F-01L2

Image representative of range only

View all in Micro Switches

Technical Documents

Specifications

Brand

Omron

Product Type

Micro Switch

Actuator Type

Roller Lever

Terminal Type

PCB Terminal

Contact Configuration

SPDT

IP Rating

IP40

Operating Force

0.78N

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

65°C

Microswitch Type

Snap-In Latch

Contact DC Voltage

30V dc

Mechanical Life

1000000Operations

Hazardous Area Certification

Standards/Approvals

RoHS

Series

D2F

Country of Origin

Japan

Product Details

Ultra Sub-Miniature Micro-switch

Snap action sub-miniature microswitch ideal for home appliances, audio equipment and communications equipment.

RoHS compliant
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action

Approvals: UL & CSA
