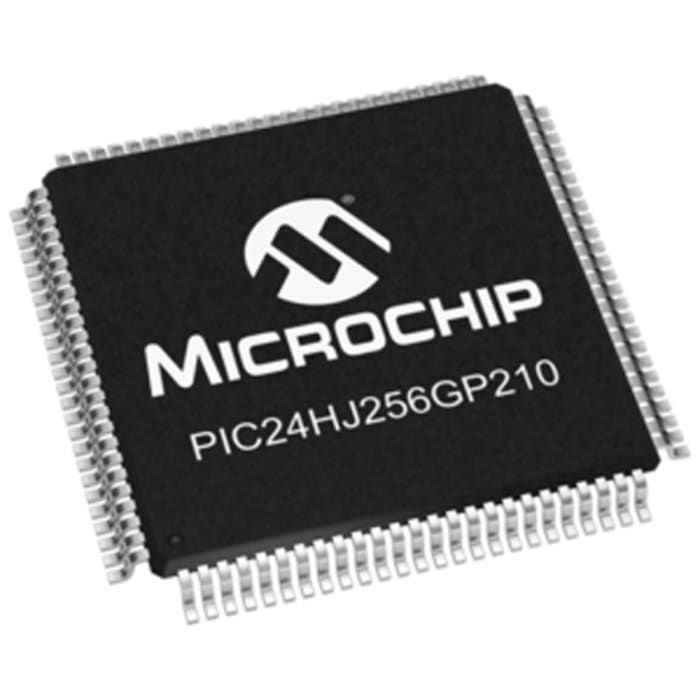

Microchip, 16 bit PIC, PIC24HJ Microcontroller, 80 MHz, 256kB FLASH, 100-Pin TQFP

Name: Microchip, 16 bit PIC, PIC24HJ Microcontroller, 80 MHz, 256kB FLASH, 100-Pin TQFP
Brand: Microchip
SKU: 7154163P

RS Stock No.: 715-4163PBrand: MicrochipManufacturers Part No.: PIC24HJ256GP210-I/PT

View all in Microcontrollers

Technical Documents

Specifications

Brand

Microchip

Product Type

Microcontroller

Series

PIC24HJ

Package Type

TQFP

Mount Type

Surface

Pin Count

100

Device Core

PIC

Data Bus Width

16bit

Program Memory Size

256kB

Maximum Clock Frequency

80MHz

RAM Size

16kB

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

1.05mm

Standards/Approvals

Length

12mm

Minimum Supply Voltage

Instruction Set Architecture

RISC

Automotive Standard

ADCs

32 x 12 Bit

Program Memory Type

FLASH

Product Details

PIC24HJxxxGPx06/x08/x10 16-Bit Microcontrollers

The PIC24HJxxxGPx06/x08/x10 family of microcontrollers are General Purpose devices with on-board peripherals suitable for a variety of applications.

Microcontroller Features

40 MIPS Max. CPU Speed
71 Instructions
53 to 85 I/O Pins – depending on model
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

Peripherals

10/12-bit Analogue to Digital Converter (ADC) – One or Two Modules with 18 or 32 Channels depending on model
Input Capture – 8 Channels
Output Compare – 8 Channels
Direct Memory Access – 8 Channels
Interrupt Controller
Nine 16-bit Timers – Option to pair up to make 32-bit Timers
Voltage Reference Module
Two 3-Wire SPI Modules
Two Universal Synchronous Asynchronous Receiver Transmitter (EUSART) Modules
