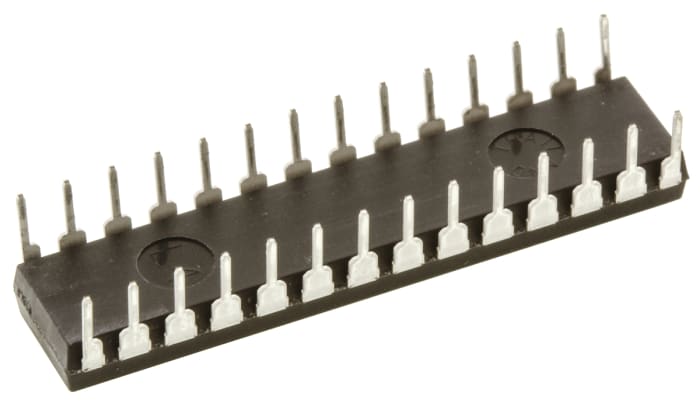

Microchip, 8 bit PIC, PIC18F2XK22 Microcontroller, 64 MHz, 16kB FLASH, 28-Pin SPDIP
Technical Document
Specifications
Brand
MicrochipSeries
PIC18F2XK22
Product Type
Microcontroller
Package Type
SPDIP
Mount Type
Surface
Pin Count
28
Device Core
PIC
Data Bus Width
8bit
Program Memory Size
16kB
Maximum Clock Frequency
64MHz
RAM Size
768bit
Maximum Supply Voltage
5.5V
Maximum Power Dissipation Pd
1W
Number of Programmable I/Os
25
Minimum Operating Temperature
-40°C
Analogue Comparators
2
Maximum Expanded Memory Size
8bit
Maximum Operating Temperature
85°C
Width
7.37 mm
Height
3.56mm
Length
34.8mm
Standards/Approvals
No
Minimum Supply Voltage
2.3V
Number of Timers
7
Instruction Set Architecture
RISC
Automotive Standard
No
ADCs
17 x 10 Bit
Program Memory Type
FLASH
Product details
PIC18F2xK22/4xK22 8-Bit Flash Microcontrollers
