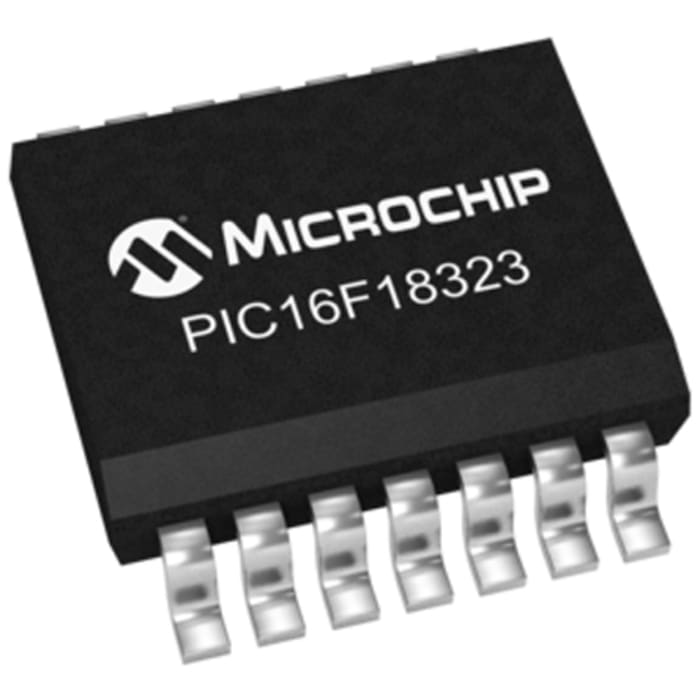

Microchip, 8 bit PIC, PIC16F18323 Microcontroller, 48 MHz, 3.5kB FLASH, 14-Pin SOIC

Name: Microchip, 8 bit PIC, PIC16F18323 Microcontroller, 48 MHz, 3.5kB FLASH, 14-Pin SOIC
Brand: Microchip
SKU: 9163747
Availability: LimitedAvailability

RS Stock No.: 916-3747Brand: MicrochipManufacturers Part No.: PIC16F18323-I/SLDistrelec Article No.: 304-44-624

View all in Microcontrollers

Technical Documents

Specifications

Brand

Microchip

Product Type

Microcontroller

Series

PIC16F18323

Package Type

SOIC

Mount Type

Surface

Pin Count

Device Core

PIC

Data Bus Width

8bit

Interface Type

EUSART, I2C, SPI

Program Memory Size

3.5kB

Maximum Clock Frequency

48MHz

RAM Size

256bit

Maximum Supply Voltage

5.5V

Maximum Power Dissipation Pd

800mW

Number of Programmable I/Os

DACs

1 x 5 Bit

Minimum Operating Temperature

-40°C

Analogue Comparators

Maximum Operating Temperature

85°C

Height

1.5mm

Length

8.65mm

Standards/Approvals

Minimum Supply Voltage

1.8V

Instruction Set Architecture

RISC

Automotive Standard

ADCs

11 x 10 Bit

Program Memory Type

FLASH

Product Details

PIC16F18313/18323 8-Bit Microcontrollers

The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture in various pin and package options.

PIC16F18313/18323 Microcontrollers are based on Microchip’s Enhanced Mid-Range core and include new Low-Power features. IDLE and DOZE modes have been added along with Peripheral Module Disable, this allows peripherals to be removed from the power rail and clock tree for zero power leakage.

Microcontroller Features

32 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
Interrupt Capability
Internal Oscillator
6 or 12 I/O Pins
Power-On Reset (POR)
Configurable Power-Up Timer (PWRTE)
Brown-Out Reset (BOR) and Low-Power Brown-Out Reset (LPBOR)
Windowed Watchdog Timer (WWDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Low voltage Programming (LVP)
Peripheral Pin Select (PPS)

Power-Saving Features

Peripheral Module Disable (PMD) – Ability to disable unused peripherals for minimal power consumption
SLEEP, IDLE and DOZE Low-Power Modes
Sleep mode: 50 nA @ 1.8 V (typical)
Watchdog Timer: 500 nA @ 1.8 V (typical)
Secondary Oscillator: 500 nA @ 32 kHz
Operating Current: 8 μA @ 32 kHz 1.8 V (typical)

Peripheral Features

10-bit Analogue-to-Digital Converter – 5 or 11 channels depending on model
5-Bit Digital-to-Analogue Converter (DAC)
Two Comparators (COMP) - 1 or 2 depending on model
Voltage Reference
Two Configurable Logic Cells (CLC)
Complementary Waveform Generator (CWG)
Two Capture/Compare/PWM (CCP) modules
Two 10-bit PWMs
Numerically Controlled Oscillator (NCO)
EUSART – RS-232, RS-485 and LIN compatible
Master Synchronous Serial Port (MSSP) – I2C, SMBus, PMBus compatible
Data Signal Modulator (DSM)
Two 8-bit Timers with Hardware Limit Timer (HLT)
One 16-bit Timer
