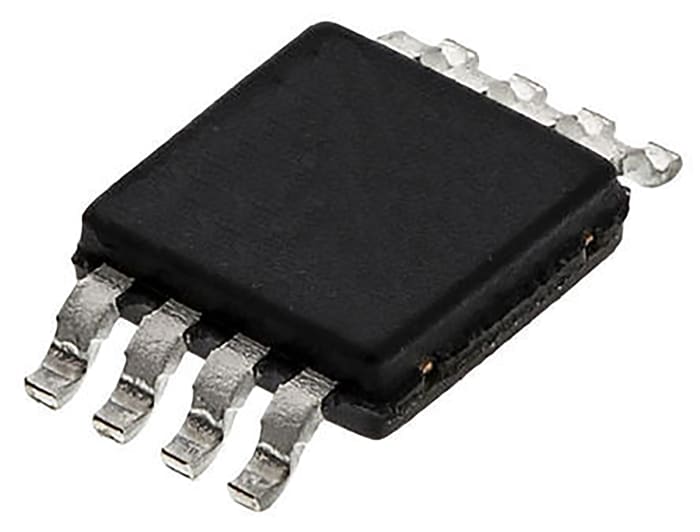

Microchip, 8 bit PIC, PIC12LF1552 Microcontroller, 32 MHz, 3.5kB FLASH, 8-Pin MSOP

Microchip’s PIC12 Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added.

The PIC12LF1552 family of microcontrollers is based upon Microchip’s enhanced mid-range core with a 16 level deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, 3.5 Kbytes program memory with data memory consisting of 256 bytes RAM. On board is a configurable RC oscillator with ±1% accuracy.

49 Instructions
16 Level Hardware Stack
16 MHz Internal Oscillator – Selectable 32 MHz to 31 kHZ
6 I/O Pins
5 Channel 10-bit Analogue to Digital Converter (ADC)
Hardware Capacitive Voltage Divider (CVD)
Voltage Reference Module
One 8-bit Timer
In-Circuit Serial Programming (ICSP)

Microchip’s PIC12F Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as Microchip adds extra features, further improves specifications and continues to offer ever greater value. Key to the success of the PIC12F was the internal RC oscillator that allowed six I/O channels in an 8-pin package. Later versions of this RC oscillator are configurable between 31kHz and 32MHz.
