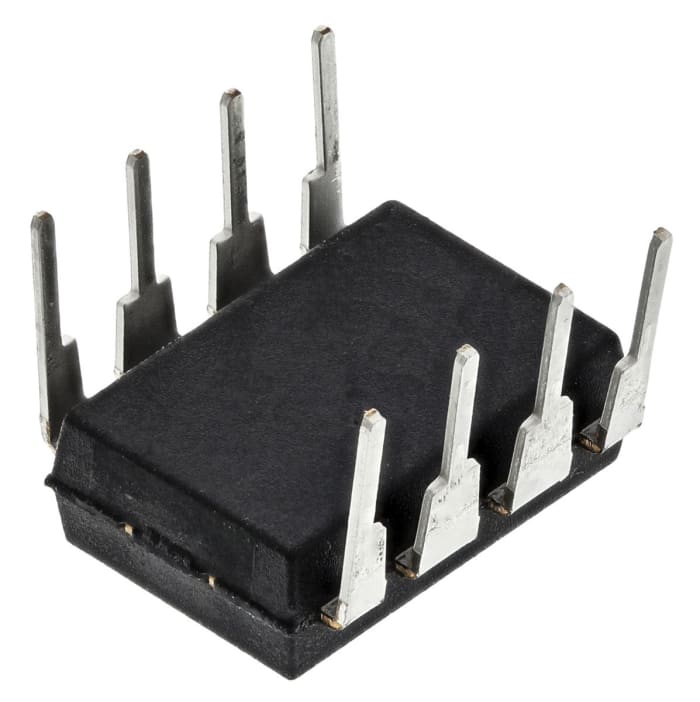

Microchip, 8 bit PIC, PIC12F1571 Microcontroller, 48 MHz, 1.75kB FLASH, 8-Pin PDIP

Name: Microchip, 8 bit PIC, PIC12F1571 Microcontroller, 48 MHz, 1.75kB FLASH, 8-Pin PDIP
Brand: Microchip
SKU: 8143067
Availability: LimitedAvailability

RS Stock No.: 814-3067Brand: MicrochipManufacturers Part No.: PIC12F1571-I/P

View all in Microcontrollers

Technical Documents

Specifications

Brand

Microchip

Product Type

Microcontroller

Series

PIC12F1571

Package Type

PDIP

Mount Type

Through Hole

Pin Count

Device Core

PIC

Data Bus Width

8bit

Interface Type

EUSART

Program Memory Size

1.75kB

Maximum Clock Frequency

48MHz

RAM Size

128bit

Maximum Supply Voltage

5.5V

Maximum Power Dissipation Pd

800mW

Number of Programmable I/Os

DACs

1 x 5 Bit

Minimum Operating Temperature

-40°C

Analogue Comparators

Maximum Operating Temperature

85°C

Height

23.24mm

Length

10.16mm

Standards/Approvals

Minimum Supply Voltage

Instruction Set Architecture

RISC

Automotive Standard

ISO/TS 16949

ADCs

4 x 10 Bit

Program Memory Type

FLASH

Product Details

PIC12F1571/1572 8-Bit Flash Microcontrollers

Microchip’s PIC12 Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added.

The PIC12F1571/1572 family of microcontrollers is based upon Microchip’s enhanced mid-range core that features a deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 3.5 Kbytes program memory and data memory of up to 256 bytes. On board is a configurable RC oscillator with ±1% accuracy.

Features

49 Instructions
16 Level Hardware Stack
16 MHz Internal Oscillator – Selectable Output Range from 16 MHz to 31 kHz
6 I/O Pins
3 Standalone PWM Modules
4 Channel 10-bit Analogue to Digital Converter (ADC)
5-bit Digital to Analogue Converter (DAC)
Two 8-bit Timers (TMR0/TMR2)
One 16-bit Timer (TMR1)
Configurable Logic Cell (CLC)
Numerically Controlled Oscillator (NCO)
Complementary Waveform Generator (CWG)
In Circuit Serial Programming (ICSP)

Microchip PIC12F 8-bit PIC® Microcontrollers

Microchip’s PIC12F Microcontrollers (MCUs) were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as Microchip adds extra features, further improves specifications and continues to offer ever greater value. Key to the success of the PIC12F was the internal RC oscillator that allowed six I/O channels in an 8-pin package. Later versions of this RC oscillator are configurable between 31kHz and 32MHz.
