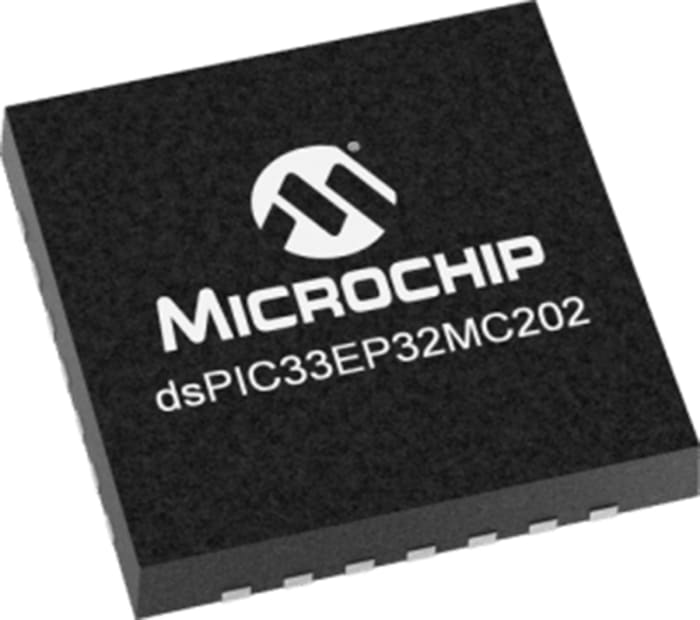

Microchip dsPIC, 16 bit Digital Signal Processor 60 MHz 32kB FLASH 28-Pin QFN

Brand

Maximum Clock Frequency

60MHz

Product Type

Digital Signal Processor

Series

dsPIC

Device Million Instructions per Second

70MIPS

Data Bus Width

16bit

RAM Size

4kB

Core

dsPIC33E/PIC24E

Instruction Set Architecture

C

Program Memory Size

32kB

Program Memory Type

FLASH

Minimum Supply Voltage

3.3V

Numeric and Arithmetic Format

ALU

Maximum Supply Voltage

3.6V

Mount Type

Surface

Package Type

QFN

Minimum Operating Temperature

-40°C

Number of ADCs

1

Number of PWM Channels

6

Pin Count

28

Maximum Operating Temperature

85°C

Height

0.95mm

Length

6mm

Standards/Approvals

IEC 60730, Class B Safety Library

Number of Cores

1

Timer Resolution

32bit

ADC Resolution

12bit

ADC Channels

6

Number of PWM Units

1

PWM Resolution

7.14ns

Automotive Standard

AEC-Q100
