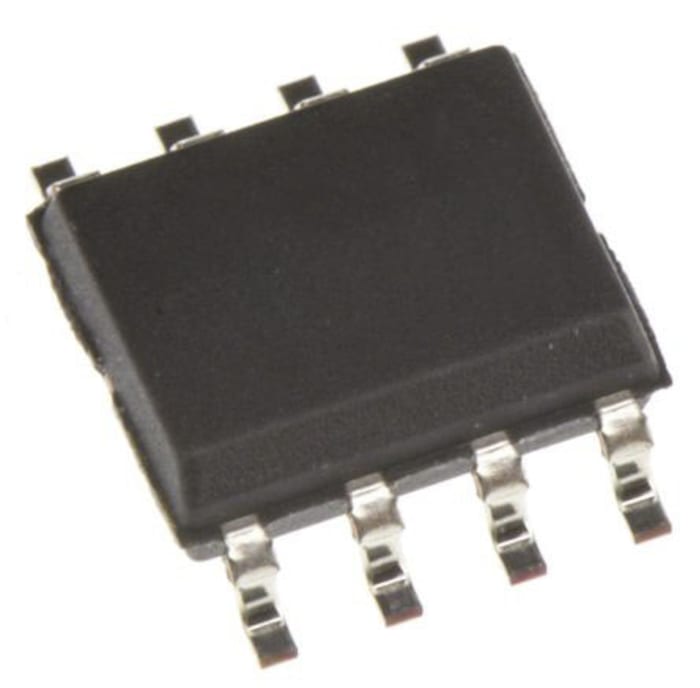

Maxim Integrated Butterworth, Low Pass Filter Active Filter, 8th Order

RS Stock No.: 190-6088Brand: Maxim IntegratedManufacturers Part No.: MAX7480ESA+
brand-logo
View all in Active Filters

Technical Document

Specifications

Brand

Maxim Integrated

Filter Type

Butterworth, Low Pass Filter

Maximum Order

8th

Architecture

Switched Capacitor

Cut-off Frequency

1 → 2kHz

Power Supply Type

Single

Typical Single Supply Voltage

4.5 → 5.5 V

Number of Circuits

1

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Dimensions

5 x 4 x 1.5mm

Height

1.5mm

Width

4mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Length

5mm

Operating Temperature Range

-40 → +85 °C
