Technical Documents
Specifications
Brand
KeithleyProduct Type
Multimeter
Multimeter Type
Bench
Model Number
2182A/E
Display Type
Digital
Functions Measured
DC Voltage, Resistance, Temperature
Maximum DC Voltage Measurement
10V dc
True RMS
No
DC Voltage Accuracy
±0.005 % rdg + 4 Digits
DC Voltage Resolution
1 μV dc
Maximum Frequency
400Hz
Power Source
Mains
Minimum Operating Temperature
0°C
Maximum Operating Temperature
50°C
Height
89mm
Length
370mm
Weight
5kg
Standards/Approvals
No
Width
213mm
Country of Origin
China
Product Details

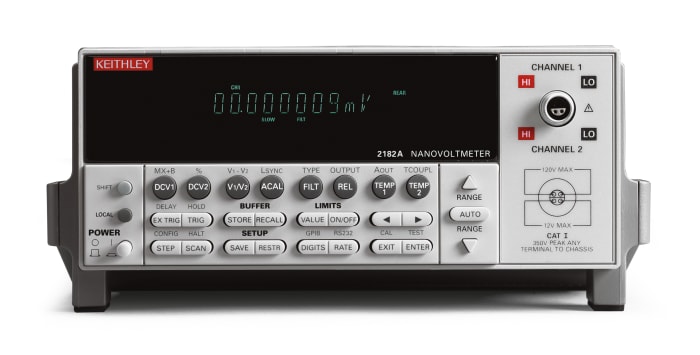

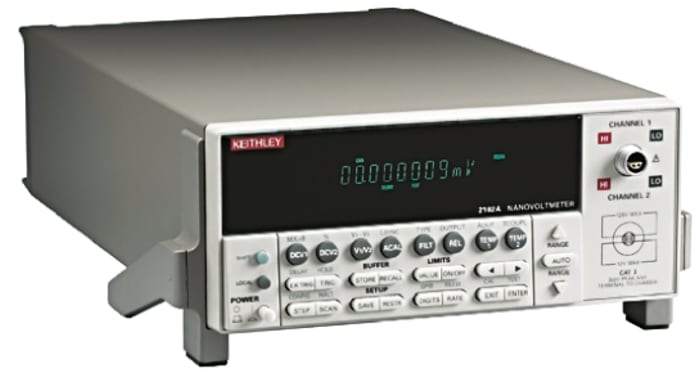

The two-channel 2182A is optimised for making stable, low noise voltage measurements and for characterising low-resistance materials reliably and repeatedly. It provides higher measurement speed and better noise performance than alternative low voltage measurement solutions. The Ability to select from a wide range of response times facilitates optimising speed/noise trade-offs. Low noise levels are assured over a wide range of useful response times, typically 15nV p-p noise at 1s response time and 40-50nV p-p noise at 60ms.
Stock information temporarily unavailable.
SR 46,755.00
SR 46,755.00 Each (ex VAT)
SR 53,768.25
SR 53,768.25 Each (inc. VAT)
1
SR 46,755.00
SR 46,755.00 Each (ex VAT)
SR 53,768.25
SR 53,768.25 Each (inc. VAT)
Stock information temporarily unavailable.
1
