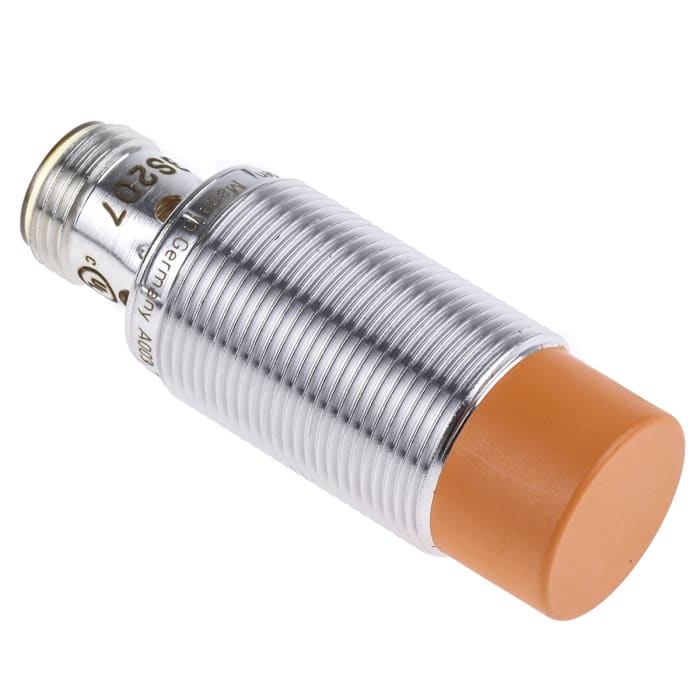

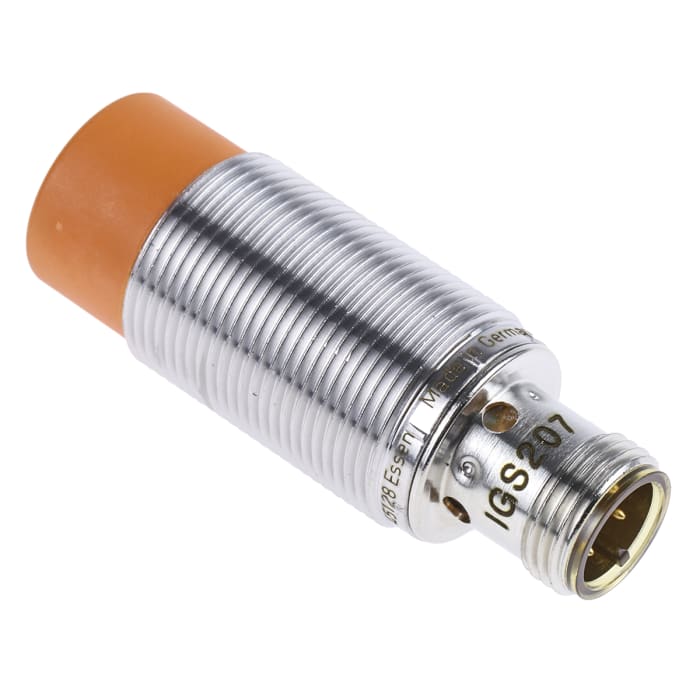

ifm electronic IGS207 Threaded Barrel Inductive Proximity Sensor, M18 x 1 PNP IGS207 36V 12 mm 36 V dc 100mA

Brand

Thread Size

M18 x 1

Product Type

Inductive Proximity Sensor

Body Style

Threaded Barrel

Length

51mm

IP Rating

IP67

Terminal Type

M12

Mount Type

Non-Flush

Width

18mm

Maximum Supply Voltage

36V

Housing Material

Bronze Plated Brass

Maximum Detection

12mm

Minimum Operating Temperature

-25°C

Maximum DC Voltage

36V dc

Materials Detected

Metal

Maximum Operating Temperature

70°C

Standards/Approvals

EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6

Series

IGS207

Maximum Switching Frequency

300Hz

Switching Current

100mA

Output Type

PNP

Shielding

Unshielded

Country of Origin

Germany
