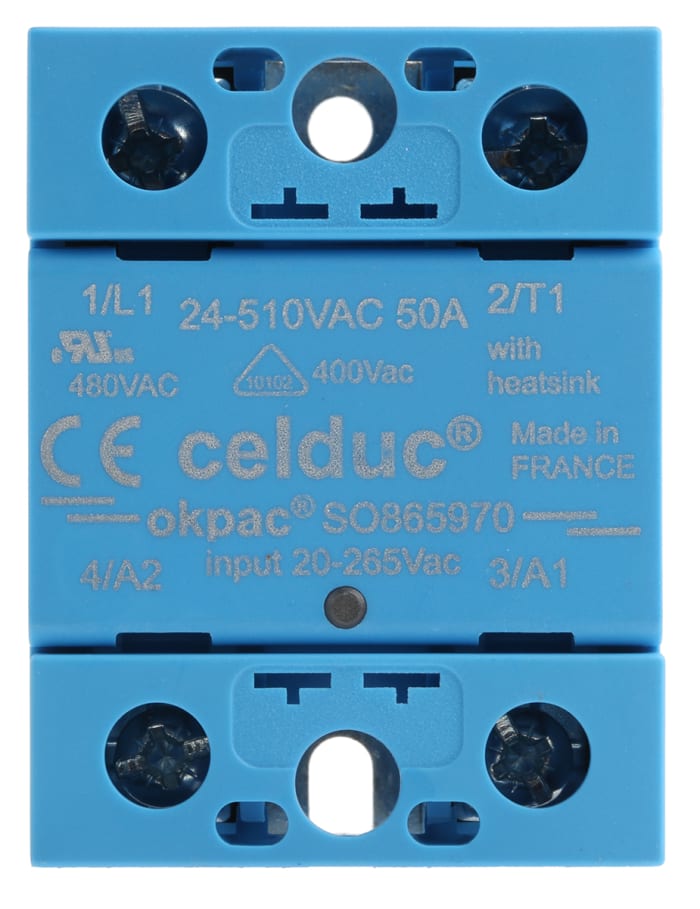

Celduc SO8 Series Solid State Relay, 60 A Load, DIN Rail Mount, 510 Vrms Load, 265V Control

Brand

Product Type

Solid State Relay

Maximum Load Current

60A

Mount Type

DIN Rail

Maximum Load Voltage

510Vrms

Minimum Load Voltage

24V ac

Minimum Control Voltage

20V ac/dc

Maximum Control Voltage

265V

Series

SO8

Terminal Type

Screw

IP Rating

IP20

Contact Configuration

SPST

Switching Function

Zero Cross Switching

Minimum Operating Temperature

-40°C

On State Resistance

16mΩ

Maximum Operating Temperature

100°C

Length

58.5mm

Standards/Approvals

RoHS, UKCA, VDE, CE, CSA, cURus, EAC

Height

30mm

Width

44.8mm

Off State Leakage Current

1mA

Output Type

Triac

Country of Origin

France
