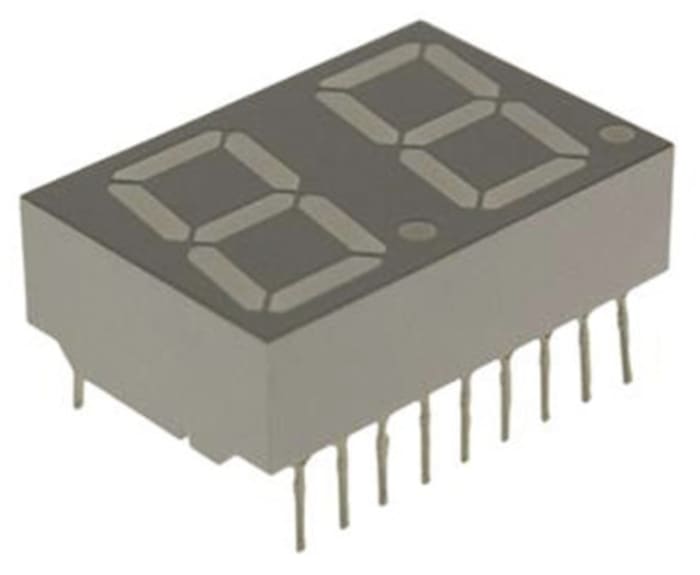

HDSP-5523-GH000 Broadcom 2 7 Segment LED Display Cathode Red 3.7mcd Right Side 14.2 mm
Technical Document
Specifications
Brand
BroadcomDisplay Type
7 Segment
Product Type
LED Display
Number of Characters
2
LED Colour
Red
Number of Segments
7
Dominant Wavelength
626 nm
Character Width
7.8mm
Character Height
14.2mm
Common Connection
Cathode
Mount Type
Through Hole
External Width
25.1mm
External Height
17mm
External Depth
8mm
Minimum Operating Temperature
100°C
Luminous Intensity
3.7mcd
Maximum Operating Temperature
-40°C
Colour of Face
Grey
Standards/Approvals
RoHS
Forward Voltage
2.1V
Decimal Orientation
Right Side
Forward Current
90mA
Product details
2- and 4-Digit 7-segment LED Displays
A range of 2- and 4-digit 7-segment Red and Green LED displays from Broadcom (Avago Technologies) in a variety of character heights.
