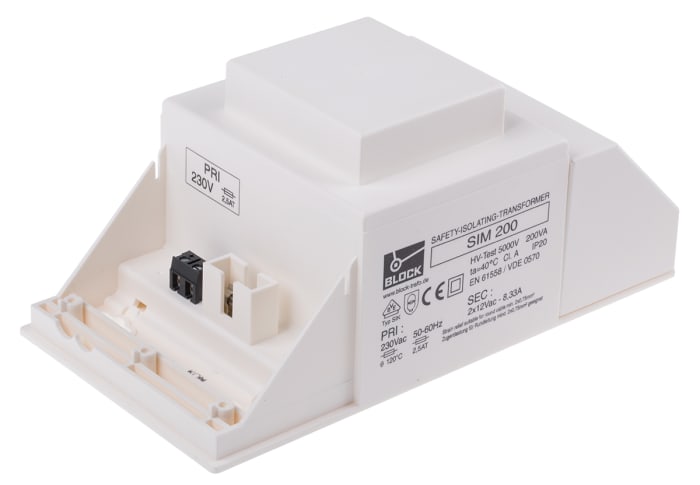

Block 2 Output 200 VA Chassis Mount Transformer, 2 x 12 V ac, cUL 506, EN 61558, VDE 0570, UL 506, VDE

Name: Block 2 Output 200 VA Chassis Mount Transformer, 2 x 12 V ac, cUL 506, EN 61558, VDE 0570, UL 506, VDE
Brand: Block
SKU: 2787046
Availability: LimitedAvailability

RS Stock No.: 278-7046Brand: BlockManufacturers Part No.: SIM 200

View all in Chassis Mounting Transformers

Technical Documents

Specifications

Brand

Block

Product Type

Chassis Mount Transformer

Primary Voltage

230 V ac

Secondary Voltage

2 x 12 V ac

Number of Outputs

Power

200VA

Maximum Operating Temperature

40°C

Minimum Operating Frequency

50Hz

Length

223mm

Depth

117mm

Weight

3.6kg

Width

223mm

Maximum Operating Frequency

60Hz

Standards/Approvals

cUL 506, EN 61558, VDE 0570, UL 506, VDE

Country of Origin

Germany

Product Details

Single Phase 230Vac Input, 12Vac or 24Vac and 115Vac or 230Vac Output, Short Circuit Proof, Safety Isolating Transformers

Brought to you by Block, this range of Safety Isolating Transformers are short-circuit proof and feature thermal overload protection. The single phase transformers are provided with mounting holes for easy installation, and have two independent secondary windings, which may be connected in series or parallel. These highly efficient safety isolating transformers have integrated primary fuse protection.

Block Safety Isolating Transformers benefit from the following features:

• Encapsulated in plastic housing upto 300VA
• Housed in metal enclosures from 500VA
• Screw terminals on input and output
• Strain relief for connecting leads
• Dual output for series or parallel connection
• High efficiency 88% typical
• 100% electrical and 5kV flash tested
• Max ambient temp: +40°C
• Insulation category: Class B (Typical)
• Construction: Class 2
• Protection index: IP20

Approvals

EN61-558, VDE 0570, UL506.

Standards

EN61558, VDE 0570, UL506.
