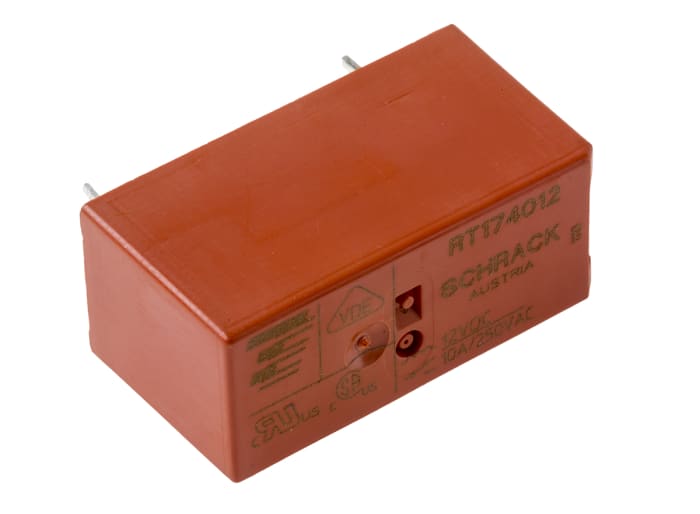

TE Connectivity SPDT PCB Mount Non-Latching Relay, 12V dc Coil 10 A
Technical Document
Specifications
Brand
TE ConnectivityCoil Voltage
12V dc
Contact Configuration
SPDT
Mounting Type
PCB Mount
Switching Current
10 A
Terminal Type
Through Hole
Coil Resistance
576 Ω
Application
Power
Length
29mm
Depth
12.7mm
Height
15.7mm
Dimensions
29 x 12.7 x 15.7mm
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Maximum Switching Power AC
2.5 kVA
Contact Material
Silver Nickel Alloy
Maximum Operating Temperature
+85°C
Country of Origin
Austria
Product details
RT1 Series - Sensitive Coil Relays
Ultra high coil sensitivity 250mW
3.5mm pinning
Switching voltage: 250Vac
H 15.7 , W 29 , D 12.7 mm
Applications: Temperature control, Domestic applications
Approvals
UL, CSA, VDE
