TE Connectivity, AMPSEAL Female 35 Way
Technical Document
Specifications
Brand
TE ConnectivitySeries
AMPSEAL
Number Of Rows
3
Current Rating
17A
Mounting Type
Cable Mount
Gender
Female
Colour
Black
Number Of Contacts
35
Termination Method
Crimp
IP Rating
IP67
Height
27.6mm
Width
63.4mm
Housing Material
PBT
Depth
33.6mm
Maximum Operating Temperature
+125°C
Product details

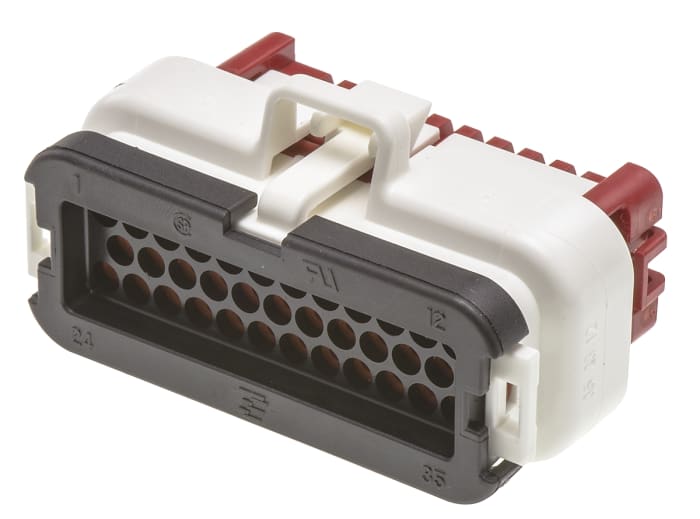

TE Connectivity AMPSEAL Plug Style Receptacle Housings
The 'AMPSEAL' range from TE Connectivity are a brilliant and rugged connector housing. They boast high reliability under high temperatures and even feature a IP67 rating. AMPSEAL connectors have a 2-piece contact hold design with secondary locking to prevent the contact from getting tore out under harsh conditions. These connectors accept a wire size of 0.5 to 1.25mm² .
Features and benefits:
• Rugged and highly reliable design
• IP67 rating to protect against the harshest of conditions
• Housed in a strong plastic
• 2-piece contact hold
• Integrated latch for mating
• Operating temperatures of -40°C to +125°C
Applications:
• Off-road automotive
• Heavy duty industrial use
• Agricultural applications
IP67 Rating:
An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.
