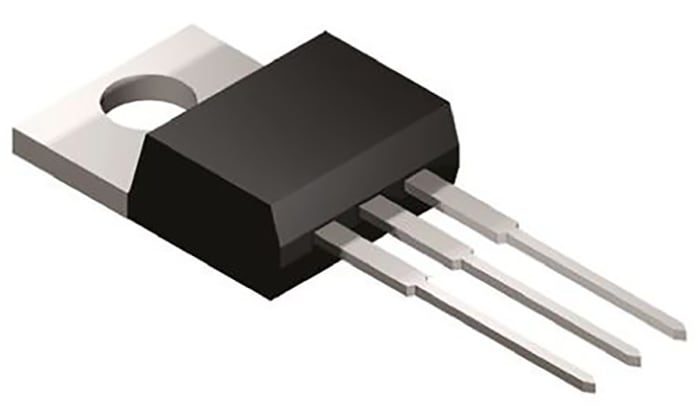

STMicroelectronics TIP29A NPN Transistor, 1 A, 60 V, 3-Pin TO-220
Technical Document
Specifications
Brand
STMicroelectronicsTransistor Type
NPN
Maximum DC Collector Current
1 A
Maximum Collector Emitter Voltage
60 V
Package Type
TO-220
Mounting Type
Through Hole
Maximum Power Dissipation
30 W
Minimum DC Current Gain
15
Transistor Configuration
Single
Maximum Collector Base Voltage
60 V
Maximum Emitter Base Voltage
5 V
Pin Count
3
Number of Elements per Chip
1
Dimensions
10.4 x 4.6 x 15.75mm
Maximum Operating Temperature
+150 °C
Country of Origin
China
Product details
NPN Power Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
SR 122.50
SR 2.45 Each (In a Tube of 50) (ex VAT)
SR 140.88
SR 2.818 Each (In a Tube of 50) (inc. VAT)
50
SR 122.50
SR 2.45 Each (In a Tube of 50) (ex VAT)
SR 140.88
SR 2.818 Each (In a Tube of 50) (inc. VAT)
50
Stock information temporarily unavailable.
Please check again later.
