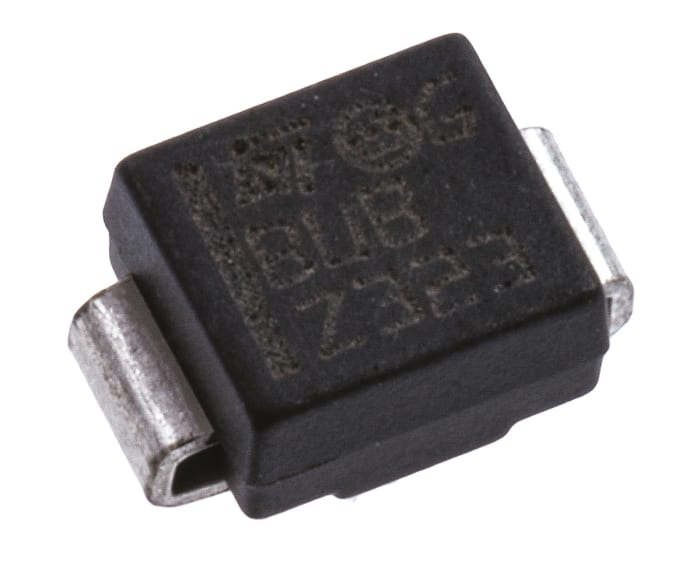

STMicroelectronics SMBJ6.5A-TR, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA
Technical Document
Specifications
Brand
STMicroelectronicsDirection Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
14.5V
Minimum Breakdown Voltage
7.2V
Mounting Type
Surface Mount
Package Type
DO-214AA (SMB)
Maximum Reverse Stand-off Voltage
6.5V
Pin Count
2
Peak Pulse Power Dissipation
600W
Maximum Peak Pulse Current
276A
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Dimensions
4.6 x 3.95 x 2.45mm
Maximum Operating Temperature
+150 °C
Height
2.45mm
Width
3.95mm
Test Current
10mA
Maximum Reverse Leakage Current
50µA
Length
4.6mm
Product details
Transil™ TVS SMT Unidirectional 600W, STMicroelectronics
Transient Voltage Suppressors, STMicroelectronics
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
SR 17.50
SR 0.70 Each (In a Pack of 25) (ex VAT)
SR 20.12
SR 0.805 Each (In a Pack of 25) (inc. VAT)
Standard
25
SR 17.50
SR 0.70 Each (In a Pack of 25) (ex VAT)
SR 20.12
SR 0.805 Each (In a Pack of 25) (inc. VAT)
Standard
25
Stock information temporarily unavailable.
Please check again later.
