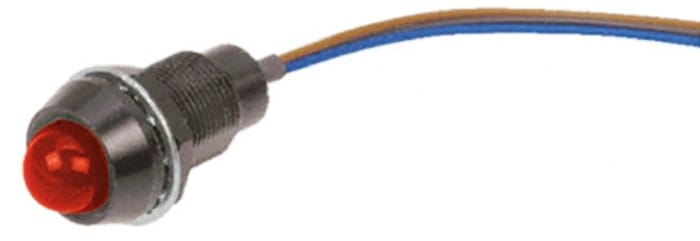

RS PRO Red Panel Mount Indicator, 24V dc, 12mm Mounting Hole Size, Lead Wires Termination

RS Pro LED Panel Mount Indicator

Brought to you by RS Pro, an LED Prominent indicator with a 12 mm mounting hole. Featuring a bright red LED which is suitable for various panel mount applications. The indicator can accommodate a lamp size of 8 mm while also offering wire termination. The voltage range is 24 V dc. The operating temperature of the LED can range from -40 to +85°C which increases the potential even further. The panel cut out required is 12mm for the 8mm LED, with this model supplied with a fixing nut and spring washer. We offer a wide selection of voltage ratings, bezel finishes and bezel styles within the RS Pro range. All models are highly reliable and excellent quality.

Features and Benefits

• 12 mm panel mounting LED indicator
• Coloured diffused epoxy lens or water clear super bright LEDs
• Prominent, recessed, chamfer and flush bezel styles
• Operating temperature range: -40 to +85°C
• Easy to install & replace

Applications

• Automation Control Panels/Points

Why choose LED?

LED has many benefits, the longevity and low power consumption are the main selling points of an LED. However, there are various other reasons to consider:

• Temperature - LED's give off a far cooler temperature than what an incandescent or neon light would.
• Direction - LED's will only emit light in a single direction, reducing the need for additional components, such as reflectors. Although this wouldn't apply if the LED indicator is being used as a circuit board signal.
