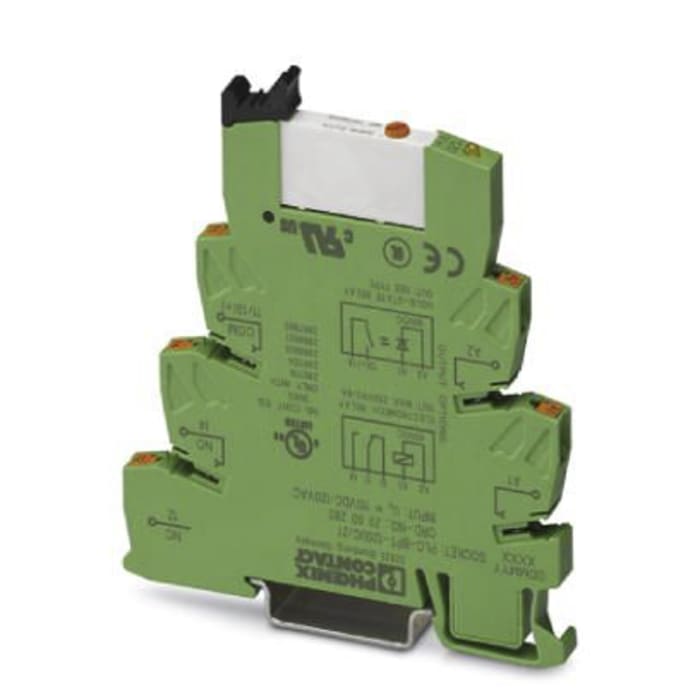

Phoenix Contact PLC-RPT-120UC/21 Series Interface Relay, DIN Rail Mount, 110V ac/dc Coil, SPDT, 1-Pole
Technical Document
Specifications
Brand
Phoenix ContactCoil Voltage
110V ac/dc
Contact Configuration
SPDT
Mounting Type
DIN Rail
Number of Poles
1
Series
PLC-RPT-120UC/21
Maximum Input Voltage
110 V dc, 120V ac
Minimum Input Voltage
110V ac/dc
Switching Voltage
5 → 250V ac/dc
Terminal Type
Surface Mount
Depth
6.2mm
Height
80mm
Length
94mm
Contact Material
Silver Alloy
Input Current
(dc) 3 mA, (ac) 3.5mA
Turn Off Time
15ms
Turn On Time
6ms
Operating Temperature Range
-40 → +55°C
For Use With
PLC
Accessory Type
Relay Module
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+55°C
Dimensions
94 x 6.2 x 80mm
Input Voltage Range
85.8 → 154 V dc, 93.6 → 168 V ac
Country of Origin
Germany
Product details
Phoenix Contact Surface Mount PLC-RPT Series
The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.
Features and Benefits
- With the use of a v8 adapter, this relay module offers efficient connection to system cabling
- The module offers safe isolation between the coil and contact
- Functional plug-in bridges
- Operating temperature range of -40 ºC to 60 ºC
- Fast plug-in connection of the PLC and other peripherals
- Gold-plated AgSnO terminals available
- Solid State versions available
What is a relay module used for?
A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.
