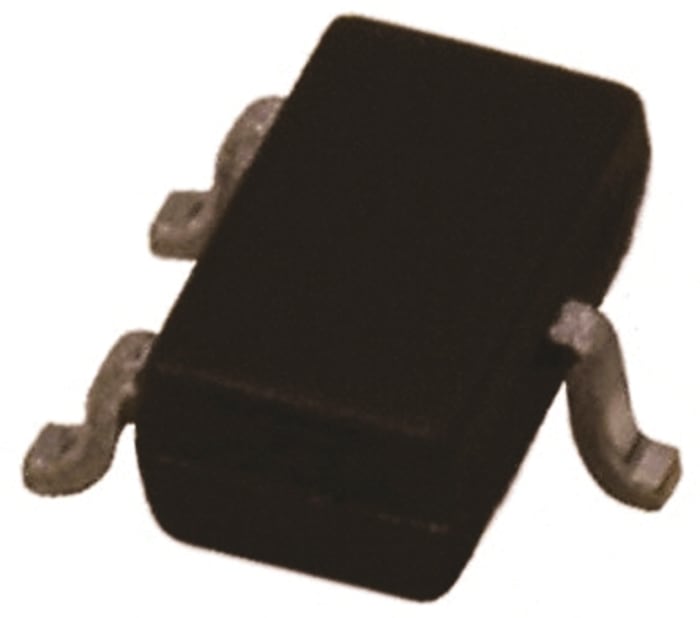

Nexperia 70V 70mA, Dual Schottky Diode, 3-Pin SOT-323 BAS70-05W,115

RS Stock No.: 463-4663Brand: NexperiaManufacturers Part No.: BAS70-05W,115
brand-logo
View all in Schottky Diodes & Rectifiers

Technical Document

Specifications

Brand

Nexperia

Mounting Type

Surface Mount

Package Type

SOT-323 (SC-70)

Maximum Continuous Forward Current

70mA

Peak Reverse Repetitive Voltage

70V

Diode Configuration

Common Cathode

Rectifier Type

Schottky Diode

Diode Type

Schottky

Pin Count

3

Number of Elements per Chip

2

Diode Technology

Schottky Barrier

Peak Non-Repetitive Forward Surge Current

100mA

Country of Origin

Malaysia

Product details

Schottky Barrier Diodes, up to 120mA, Nexperia

High efficiency
Ultra-small, low-profile surface-mount packages
Optimized for Low forward voltage drop and high junction temperature
Low capacitance
Negligible power switching losses
Low leakage current
