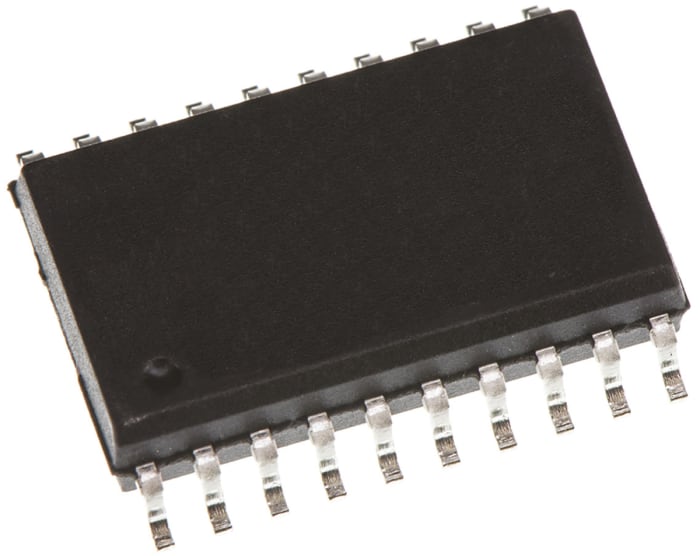

Technical Document
Specifications
Brand
MicrochipFamily Name
ATtiny26
Package Type
SOIC
Mounting Type
Surface Mount
Pin Count
20
Device Core
AVR
Data Bus Width
8bit
Program Memory Size
2 kB
Maximum Frequency
16MHz
RAM Size
128 B
USB Channels
0
Number of PWM Units
1
Number of SPI Channels
1
Number of USART Channels
0
Typical Operating Supply Voltage
4.5 → 5.5 V
Number of I2C Channels
1
Number of UART Channels
0
Number of CAN Channels
0
Number of ADC Units
1
Maximum Operating Temperature
+85 °C
Height
2.35mm
Number of LIN Channels
0
Number of Ethernet Channels
0
Number of PCI Channels
0
Pulse Width Modulation
1 (4 Channel)
Dimensions
13 x 7.6 x 2.35mm
Width
7.6mm
Program Memory Type
Flash
Minimum Operating Temperature
-40 °C
Instruction Set Architecture
RISC
Maximum Number of Ethernet Channels
0
ADCs
11 x 10 bit
Length
13mm
Product details
8-Bit tinyAVR® Microcontrollers
Atmel's tinyAVR® devices are optimized for applications that require performance, power efficiency, and ease-of-use in a small package.
Small for applications where size is critical
Capacitive Touch
Fast and code efficient
High integration
1.8V to 5.5V operation (ATtiny43U)
SR 31.70
SR 15.85 Each (In a Pack of 2) (ex VAT)
SR 36.46
SR 18.228 Each (In a Pack of 2) (inc. VAT)
Standard
2
SR 31.70
SR 15.85 Each (In a Pack of 2) (ex VAT)
SR 36.46
SR 18.228 Each (In a Pack of 2) (inc. VAT)
Stock information temporarily unavailable. please contact rs@ae.com.sa for more details.
Standard
2
Stock information temporarily unavailable. please contact rs@ae.com.sa for more details.
