Gefran 1000 PID Temperature Controller, 48 x 96 (1/8 DIN)mm, 1 Output Logic, Relay, 100 → 240 V ac/dc Supply
Technical Document
Specifications
Brand
GefranOutput Type
Logic, Relay
Supply Voltage
100 → 240 V ac/dc
Size
48 x 96 (1/8 DIN)mm
Number of Outputs
1
Minimum Operating Temperature
0°C
Maximum Operating Temperature
+50°C
Temperature Range
0 → +800 (Type J Thermocouple) °C, 0 → +999 (Type K Thermocouple) °C, 0 → +999 (Type N Thermocouple) °C, 0 → +999 (Type R Thermocouple) °C, 0 → +999 (Type S Thermocouple) °C, -100 → +400 (Type T Thermocouple) °C, -19.9 → +99.9 (RTD 2/3-Wires - PT100) °C, -199 → +400 (RTD 2/3-Wires - PT100) °C
Display Type
LED
IP Rating
IP54
Range
Gefran 1000
Series
1000
Additional Functionality
ON/OFF
Panel Depth
100mm
Display Colour
Green
Country of Origin
Italy
Product details
Gefran 1000 Series
Suitable for use in manufacturing, chemical and pharmaceutical industries as well as food, packaging and even wood working machines. The Gefran 1000 series of Microprocessor Controllers supports thermocouple configuration to suit almost any application. This series of Microprocessor temperature controllers are equipped with a Lexan© membrane faceplate to provide a frontal IP54 rating.
Featuring self-tuning, auto-tuning soft-start and bumpless transfer, the 1000 series controllers are quick and easy to commission into a control system with simplistic maintenance processes as well as being easy to install into a standard 1/8 DIN unit.

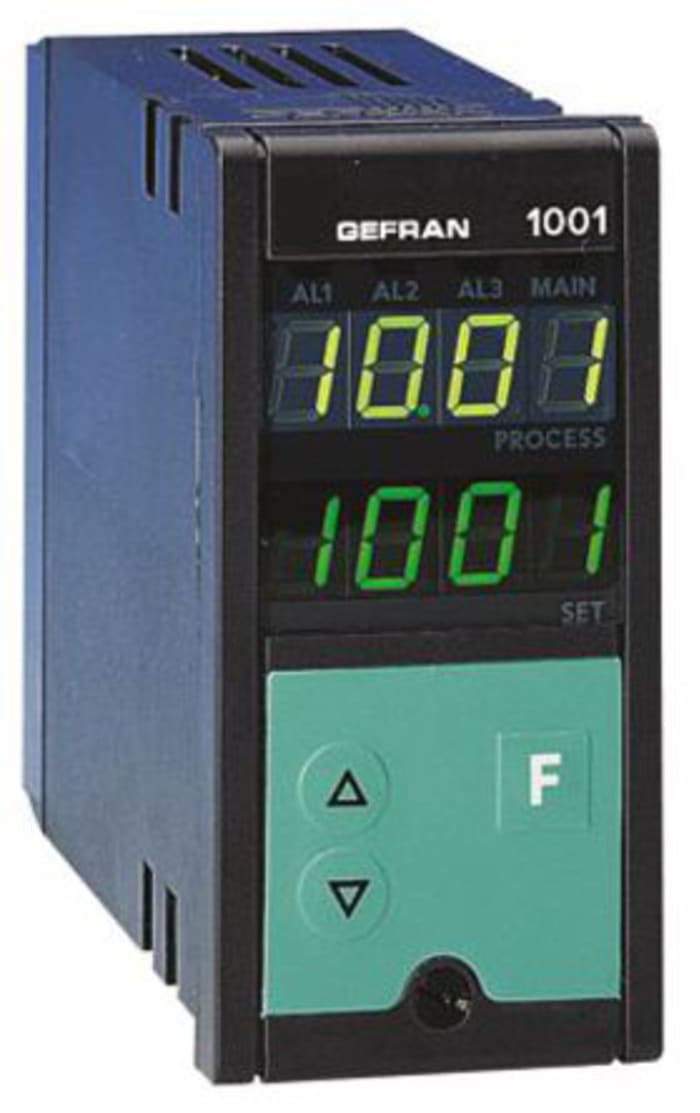

The large format LED read out features two rows of green 14mm characters to clearly display temperature and control read outs. The IP54 rated facia also features three control keys, a single function key along with a raise and lower key for program controlling.
Features and Benefits
• Optional input signal offset
• Logic main, relay & mA main output
• Up to 3 configurable alarms
• Short circuit & open circuit probe alert
• Supports self-tuning, soft-start & bumpless manual / auto transfer
• Relay (5A at 250 Vac / 30 Vdc) & static (24 Vdc ± 10%) outputs available
• Auxiliary C.T input
Gefran Series 400, 600, 650, 1000, 1200 & 1250
