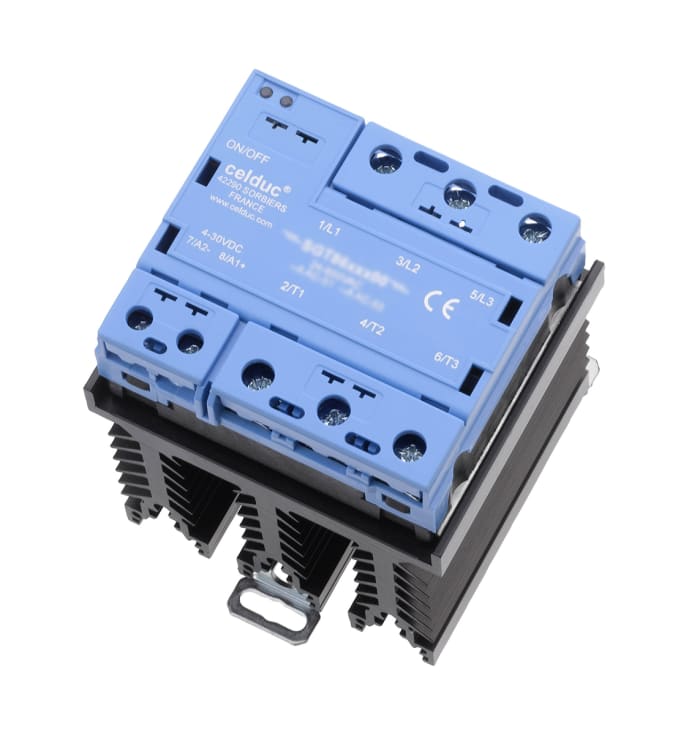

Celduc SIT Series Solid State Relay, 22 A Load, DIN Rail Mount, 510 V ac Load, 240 V ac Control
Technical Document
Specifications
Brand
CelducMaximum Load Current
22 A
Mounting Type
DIN Rail
Maximum Load Voltage
510 V ac
Minimum Load Voltage
24 V ac
Minimum Control Voltage
90 V ac
Maximum Control Voltage
240 V ac
Switching Type
Zero Cross
Control Voltage Range
90 → 240 V ac
Range
celpac Ready to use
Minimum Load Current
3 mA
Number of Poles
3
Terminal Type
Screw
Output Device
Thyristor
Relay Type
Three Phase Solid State Contactor
Maximum Turn On Time
30ms
Series
SIT
Load Voltage Range
24 → 510V ac
Dimensions
90 x 98 x 122mm
Height
122mm
Off State Leakage Current
1 mA
Length
90mm
Operating Temperature Range
-40 → +100°C
Standards Met
CE, cURus
Minimum Operating Temperature
-40°C
Depth
98mm
Maximum Operating Temperature
+100°C
Country of Origin
France
Product details
SIT series 3-phase solid state relays
3-phase solid state relays with AC/DC control suited for all loads.
Feature a heat sink.
TMS technology thyristor output ensures longevity.
High immunity and output voltage protection using RC and varistor.
IP20 protection.
Standards
EN60947-4-3 (IEC947-4-3)
and EN60950 / VDE0805 (reinforced insulation) -UL-cUL
Instantaneous Switching
