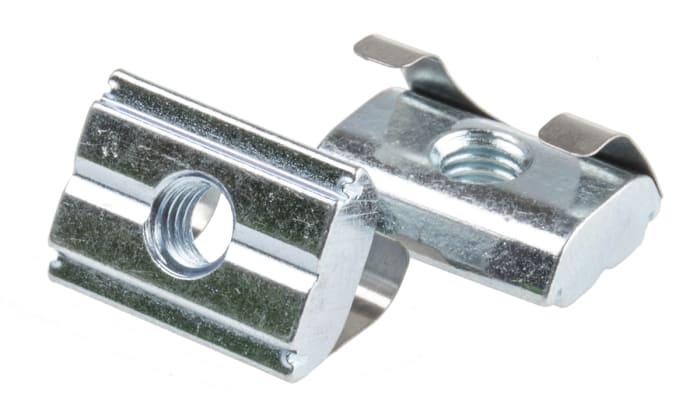

Bosch Rexroth M6 Sliding Block, Connecting Component, Strut Profile 30 mm, Groove Size 8mm

RS Stock No.: 449-5092Brand: Bosch RexrothManufacturers Part No.: 3842529296
brand-logo
View all in Connecting Components

Technical Document

Specifications

Brand

Bosch Rexroth

Connector Type

Sliding Block

Fits Groove Size

8mm

Fits Strut Profile

30 mm

Thread Size

M6

Material

Galvanised Steel

Structural Element Type

Fixing & Connection Element

Length

16mm

Product Family

Bosch Basic

Product System

MGE

Country of Origin

China

Product details

Retractable Sliding Blocks with Attached Spring

Large supporting surface
Transmitting high force safely
Swivel-in for direct insertion into groove or removal
8mm size are 16mm long
10mm size are 20mm long

Thread size M5 RS 449-5086
Thread size M6 RS 449-5092, RS 449-5115
Thread size M8 RS 449-5109, RS 449-5137
