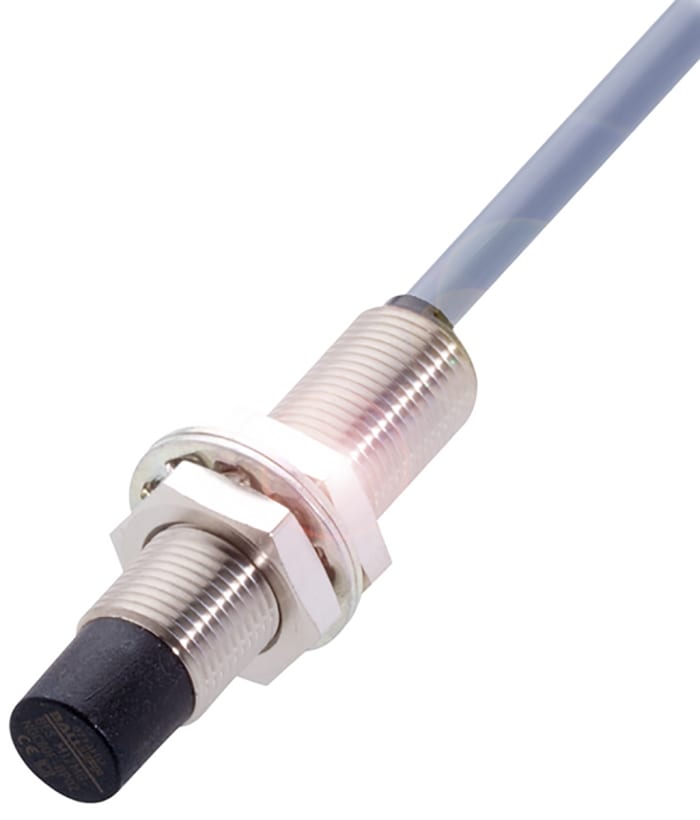

BALLUFF Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, NPN Output, 10 → 55 V dc, IP67

RS Stock No.: 413-9742Brand: BALLUFFManufacturers Part No.: BES M12MI-NSH80B-S04G
brand-logo
View all in Proximity Sensors

Technical Document

Specifications

Brand

BALLUFF

Sensor Technology

Inductive

Body Style

Barrel

Thread Size

M12 x 1

Output Type

NPN

Detection Range

8 mm

Terminal Type

4-Pin M12 Connector

IP Rating

IP67

Supply Voltage

10 → 55 V dc

Length

65mm

Maximum dc Voltage

55V

Mounting Type

Flush

Switching Current

200 mA

Maximum Switching Frequency

300Hz

Housing Material

Nickel Plated

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

0°C

Reverse Polarity Protection

Yes

Short Circuit Overload Protection

Yes

Product details

3 / 4-Wire Flush Inductive Proximity Sensors

Features and benefits

Can be embedded in metal with a minimal flush free zone
Short circuit and polarity reversal protection
LED for visual indication of output state
