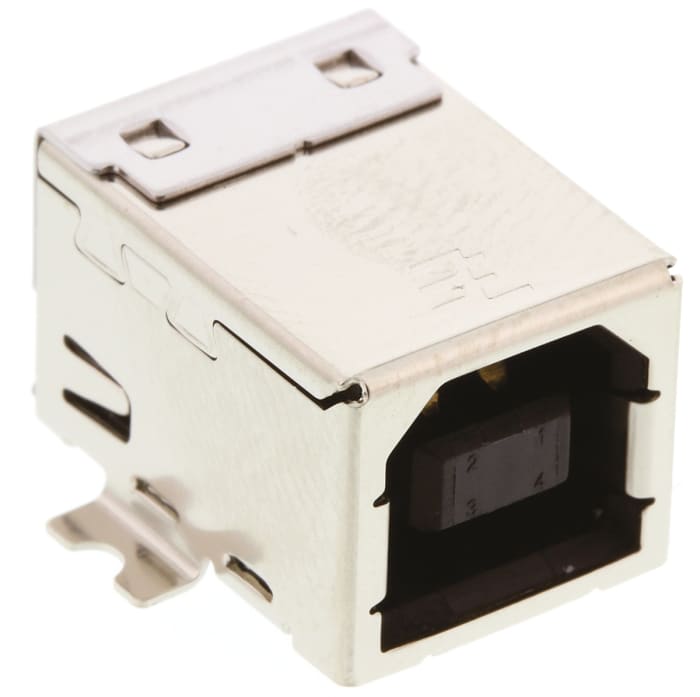

ASSMANN WSW Right Angle, SMT, Socket- Single Port Type B 2.0 USB Connector

RS Stock No.: 674-1331Brand: ASSMANN WSWManufacturers Part No.: A-USB B/SMT
brand-logo
View all in USB Connectors

Technical Document

Specifications

Brand

ASSMANN WSW

Gender

Female

USB Type

B

Mounting Type

Surface Mount

Termination Method

Solder

USB Version

2.0

Body Orientation

Right Angle

Number of Ports

1

Current Rating

1.0A

Voltage Rating

30.0 V

Contact Material

Brass

Orientation

Angled

Product details

USB Style A and B SMD

Assmann

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
You may be interested in
Stock information temporarily unavailable.

SR 89.60

SR 17.92 Each (In a Pack of 5) (ex VAT)

SR 103.04

SR 20.608 Each (In a Pack of 5) (inc. VAT)
